36Mb ZBT SRAM, 133MHz frequency, 6.5ns access time, 3.3V operating voltage. Features a 20-bit address bus, 36-bit word size, and parallel interface. This CMOS memory component is housed in a TQFP package, suitable for industrial temperature ranges (-40°C to 85°C). RoHS compliant and lead-free.
Frequency133MHz
PackageTQFP
Current310mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C1461AV33-133AXI technical specifications.
General
| Access Time | 6.5ns |
| Access Time-Max | 6.5ns |
| Address Bus Width | 20b |
| Package/Case | TQFP |
| Density | 36Mb |
| Frequency | 133MHz |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Frequency | 133MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 36Mb |
| Memory Type | SDR, , Volatile, SRAM |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Ports | 4 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 72 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | NoBL™ |
| Supply Current | 310mA |
| Supply Voltage-Nom | 3.3V |
| Sync/Async | Synchronous |
| Temperature Grade | INDUSTRIAL |
| Word Size | 36b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY7C1461AV33-133AXI Datasheet
Download the complete datasheet for Cypress CY7C1461AV33-133AXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

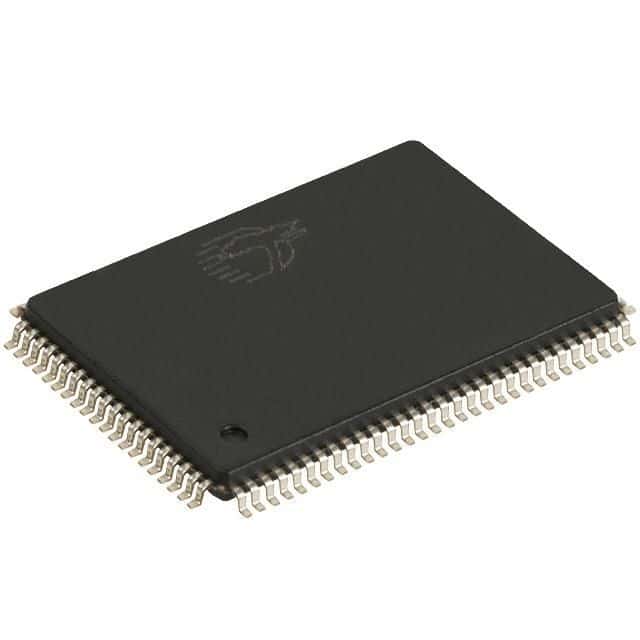

Product Images
