Synchronous FIFO memory IC, 1KX18 organization, offering 18-bit data bus width and 10ns access time. Features include programmable flags, retransmit capability, and unidirectional bus operation. Operates at a maximum frequency of 66.7MHz with a 5V supply voltage. Packaged in a 64-pin TQFP (14x14mm) for surface mounting.
Frequency66.7MHz
PackageTQFP
Current45mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C4225-15AC technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Bus Directional
Unidirectional
Package/Case
TQFP
Data Bus Width
18b
Density
18Kb
Direction
Unidirectional
Frequency
66.7MHz
FWFT Support
No
Lead Free
Contains Lead
Max Frequency
66.7MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
45mA
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
1KX18
Package Quantity
180
Packaging
Tray
Programmable Flags Support
Yes
Retransmit Capability
Yes
RoHS Compliant
No
Series
CY7C
Supply Current
45mA
Sync/Async
Synchronous
Word Size
18b
Compliance
RoHS
Not Compliant
Datasheet
Cypress CY7C4225-15AC Datasheet
Download the complete datasheet for Cypress CY7C4225-15AC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

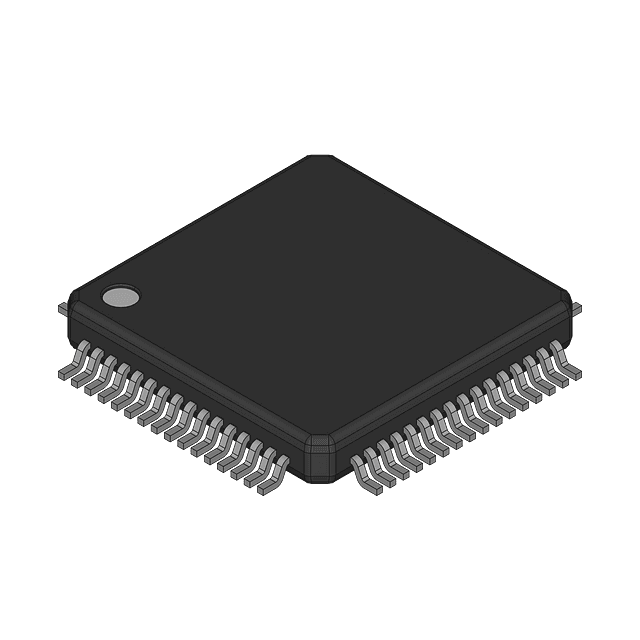

Product Images
