Asynchronous 1KX9 FIFO memory IC, featuring a 9-bit data bus width and 15ns access time. This CMOS component operates at up to 40MHz with a 5V supply voltage and is available in a 32-pin PLCC package for surface mounting. It offers retransmit capability and is RoHS compliant.
Frequency40MHz
PackagePLCC
Current65mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C425-15JXC technical specifications.
General
Access Time
15ns
Access Time-Max
15ns
Bus Directional
Unidirectional
Package/Case
PLCC
Data Bus Width
9b
Density
9216b
Direction
Unidirectional
Frequency
40MHz
FWFT Support
No
Lead Free
Lead Free
Max Operating Temperature
70°C
Max Supply Current
65mA
Max Supply Voltage
5.5V
Memory Size
9Kb
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Circuits
2
Operating Supply Voltage
5V
Organization
1KX9
Package Quantity
30
Packaging
Rail/Tube
Programmable Flags Support
No
Radiation Hardening
No
Retransmit Capability
Yes
RoHS Compliant
Yes
Series
CY7C
Supply Current
65mA
Supply Voltage-Nom
5V
Sync/Async
Asynchronous
Word Size
9b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C425-15JXC Datasheet
Download the complete datasheet for Cypress CY7C425-15JXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

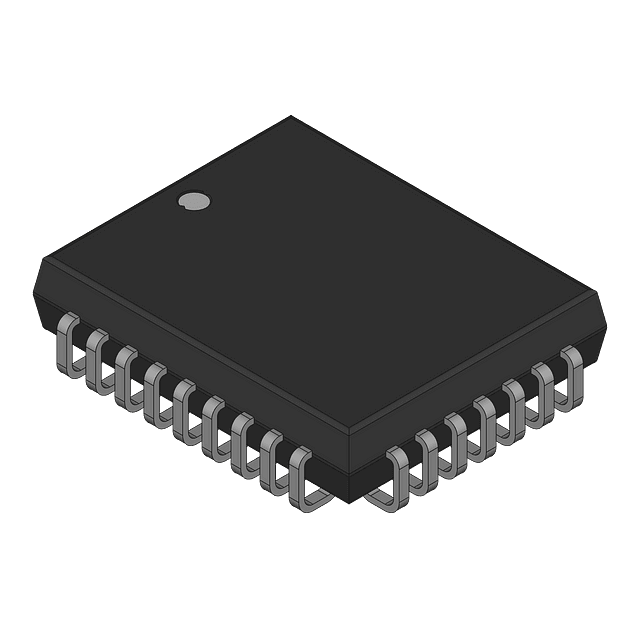

Product Images
