Synchronous FIFO memory IC, 576Kb density, 64K x 9 organization, featuring an 8ns access time and 100MHz maximum frequency. This unidirectional, CMOS component supports programmable flags and operates from a 3V to 3.6V supply. Packaged in a 32-pin PLCC with tin, matte contact plating, it is RoHS compliant and designed for surface mounting.
Frequency100MHz
PackagePLCC
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C4281V-10JXC technical specifications.
General
| Access Time | 8ns |
| Access Time-Max | 8ns |
| Bus Directional | Unidirectional |
| Package/Case | PLCC |
| Contact Plating | Tin, Matte |
| Data Bus Width | 9b |
| Density | 576Kb |
| Direction | Unidirectional |
| Frequency | 100MHz |
| FWFT Support | No |
| Lead Free | Lead Free |
| Max Frequency | 100MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 576Kb |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Operating Supply Voltage | 3.3V |
| Organization | 64KX9 |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Programmable Flags Support | Yes |
| Radiation Hardening | No |
| Retransmit Capability | No |
| RoHS Compliant | Yes |
| Series | CY7C |
| Supply Current | 25mA |
| Supply Voltage-Nom | 5V |
| Sync/Async | Synchronous |
| Word Size | 9b |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY7C4281V-10JXC Datasheet
Download the complete datasheet for Cypress CY7C4281V-10JXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

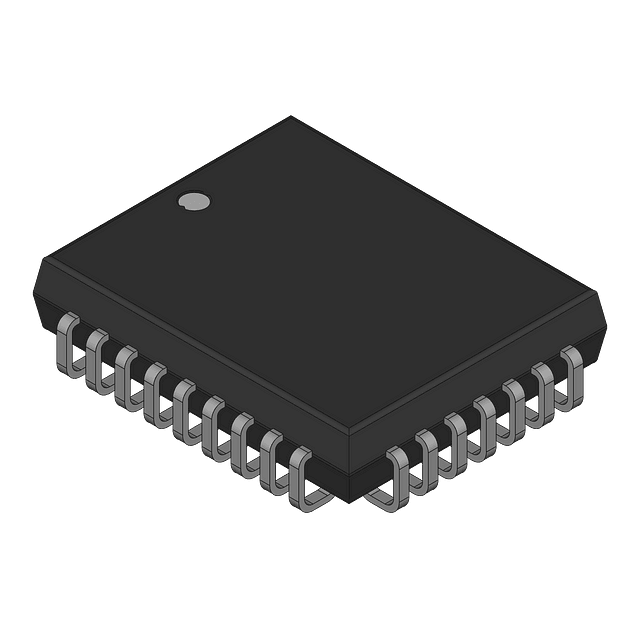

Product Images
