Synchronous FIFO memory IC, 1.125Mb density, organized as 128K x 9 bits. Features 8ns access time and a maximum operating frequency of 100MHz. This unidirectional, CMOS component supports programmable flags and operates from a 3V to 3.6V supply voltage. Packaged in a 32-pin PLCC for surface mounting, it is lead-free and RoHS compliant.
Frequency100MHz
PackagePLCC
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C4291V-10JXC technical specifications.
General
Access Time
8ns
Access Time-Max
8ns
Bus Directional
Unidirectional
Package/Case
PLCC
Data Bus Width
9b
Density
1.125Mb
Direction
Unidirectional
Frequency
100MHz
FWFT Support
No
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
70°C
Max Supply Current
25mA
Max Supply Voltage
3.6V
Memory Size
1.125Mb
Min Operating Temperature
0°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Circuits
2
Operating Supply Voltage
3.3V
Organization
128KX9
Package Quantity
60
Packaging
Rail/Tube
Programmable Flags Support
Yes
Radiation Hardening
No
Retransmit Capability
No
RoHS Compliant
Yes
Series
CY7C
Supply Current
25mA
Supply Voltage-Nom
5V
Sync/Async
Synchronous
Word Size
9b
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C4291V-10JXC Datasheet
Download the complete datasheet for Cypress CY7C4291V-10JXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

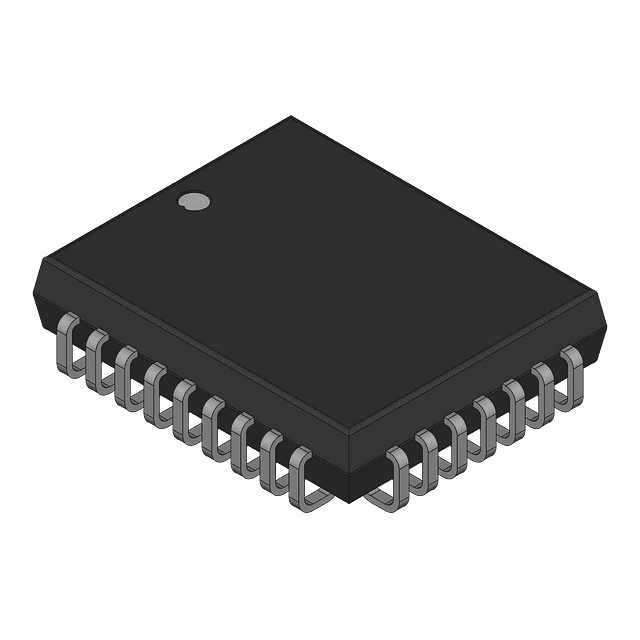

Product Images
