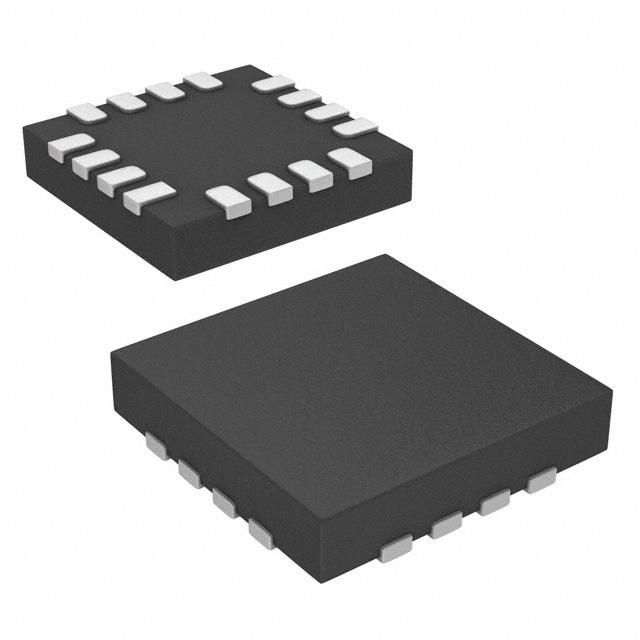

USB Bus Controller, featuring an 8-bit M8C core architecture, operates at a 12Mbps data rate and supports I2C, SPI, and USB interfaces. This CMOS integrated circuit includes 32KB of FLASH memory, 2KB of RAM, and 11 I/Os, with 3 timers/counters and 1 transceiver. It offers ESD protection, operates within a 3V to 5.5V supply voltage range, and functions between 0°C and 70°C. Packaged in a lead-free, RoHS-compliant QFN-16 (3mm x 3mm x 0.55mm) tray, this component is designed for efficient interface control.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY7C64316-16LKXC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFN |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Data Rate | 12Mbps |
| ESD Protection | Yes |
| Height | 0.55mm |
| Interface | I2C, SPI, USB |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3V |
| Number of I/Os | 11 |
| Number of Timers/Counters | 3 |
| Number of Transceivers | 1 |
| Package Quantity | 490 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 2KB |
| RoHS Compliant | Yes |
| Series | enCoRe™ V |
| Width | 3mm |
| RoHS | Compliant |
