8-bit microcontroller interface controller featuring an 8051 core architecture operating at up to 48MHz. This surface mount device offers 16KB RAM, 24 programmable I/Os, and 3 timers/counters. Interfaces include I2C, USB, and USART, with a 3.3V operating supply voltage. Packaged in a 56-pin QFN EP with tin, gold, and matte contact plating, it operates from -40°C to 105°C and is lead-free and RoHS compliant.
Frequency48MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY7C68013A-56LFXI technical specifications.
General
Access Time
48us
Package/Case
QFN EP
Contact Plating
Tin, Gold, Matte
Core Architecture
8051
Data Bus Width
8b
Interface
I2C, USB, USART
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
105°C
Max Power Dissipation
300mW
Max Supply Voltage
3.6V
Memory Type
ROMless,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
24
Number of Programmable I/O
24
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Package Quantity
260
Packaging
Tray
RAM Size
16KB
RoHS Compliant
Yes
Series
EZ-USB FX2LP™
Compliance
RoHS
Compliant
Datasheet
Cypress CY7C68013A-56LFXI Datasheet
Download the complete datasheet for Cypress CY7C68013A-56LFXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

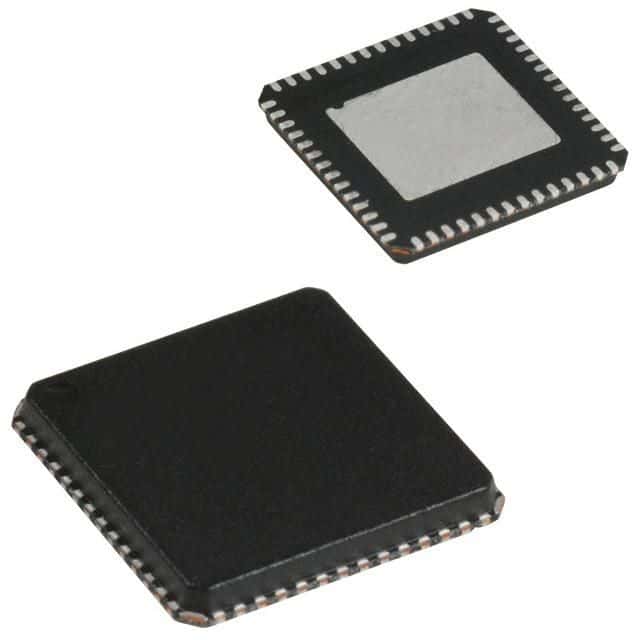

Product Images
