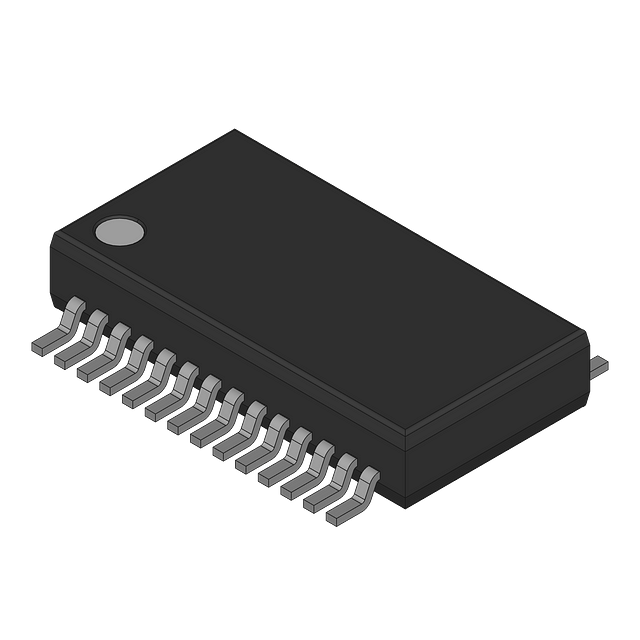

8-bit microcontroller with 8KB FLASH memory and 256B RAM. Features an M8C core architecture, operating at up to 24MHz with 26 programmable I/Os. Supports I2C, SPI, and UART/USART interfaces, and includes 2 timers/counters. Housed in a lead-free SSOP-28 package (10.4mm L x 5.6mm W x 1.85mm H), this component operates from 3V to 5.25V and across a -40°C to 85°C temperature range. Integrated peripherals include POR, PWM, WDT, and LVD.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY8C23433-24PVXI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SSOP |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Height | 1.85mm |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Number of I/Os | 26 |
| Number of Programmable I/O | 26 |
| Number of Timers/Counters | 2 |
| Oscillator Type | Internal |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, WDT, LVD |
| Radiation Hardening | No |
| RAM Size | 256B |
| RoHS Compliant | Yes |
| Series | PSOC®1 CY8C23xxx |
| Width | 5.6mm |
| RoHS | Compliant |
