CMOS microcontroller featuring an 8-bit M8C core operating at up to 24MHz. This peripheral IC offers 16KB of FLASH memory, 1KB of RAM, and 49 programmable I/Os. Integrated interfaces include I2C, SPI, UART, USB, and USART, with onboard peripherals such as POR, PWM, and a watchdog timer. Packaged in a lead-free QFN with tin contact plating, it operates from 3V to 5.25V supply voltage and across a temperature range of -40°C to 85°C.
Frequency24MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C24894-24LFXA technical specifications.
General
| Package/Case | QFN |
| Contact Plating | Tin |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Frequency | 24MHz |
| Interface | I2C, SPI, UART, USB, USART |
| Lead Free | Lead Free |
| Max Frequency | 24MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 3V |
| Number of GPIO | 49 |
| Number of I/Os | 49 |
| Number of Programmable I/O | 49 |
| Oscillator Type | Internal |
| Package Quantity | 260 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 1KB |
| RoHS Compliant | Yes |
| Series | PSOC®1 CY8C24xxx |
| Technology | CMOS |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY8C24894-24LFXA Datasheet
Download the complete datasheet for Cypress CY8C24894-24LFXA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

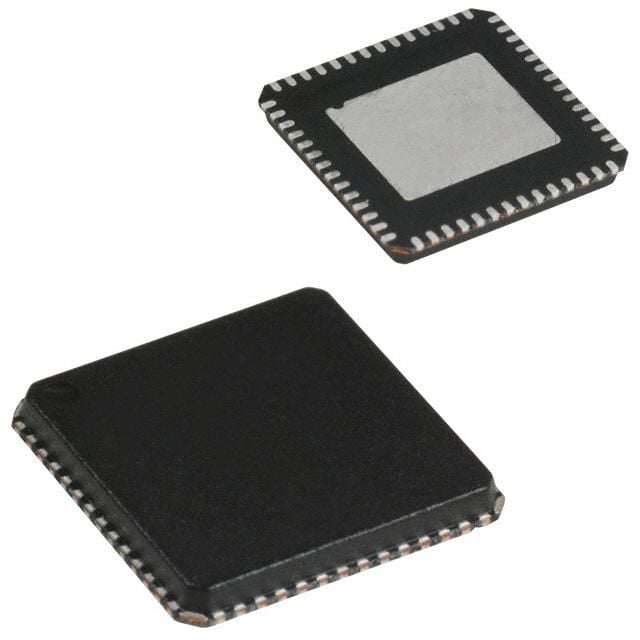

Product Images
