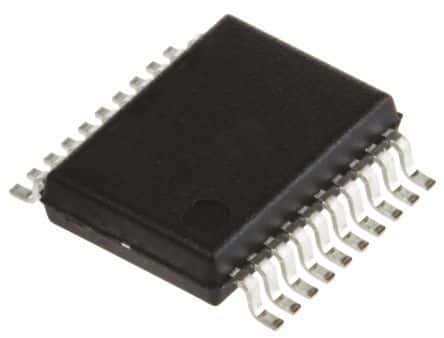

8-bit CMOS microcontroller with 16KB FLASH memory and 256B RAM. Features an M8C core architecture operating at 24MHz, supporting I2C, SPI, and UART/USART interfaces. Includes 16 I/Os, 8 PWM channels, and integrated peripherals like POR, WDT, and LVD. Packaged in a 20-pin SSOP, this RoHS compliant component operates from 3V to 5.25V with an access time of 24µs.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY8C27243-24PVXIT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 24us |
| Package/Case | SSOP |
| Core Architecture | M8C |
| Data Bus Width | 8b |
| Frequency | 24MHz |
| Interface | I2C, SPI, UART, USART |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 16KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Number of I/Os | 16 |
| Number of PWM Channels | 8 |
| Operating Supply Voltage | 5V |
| Oscillator Type | Internal |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Peripherals | POR, PWM, WDT, LVD, I2C |
| Radiation Hardening | No |
| RAM Size | 256B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PSOC®1 CY8C27xxx |
| Technology | CMOS |
| Watchdog Timer | Yes |
| RoHS | Compliant |
Download the complete datasheet for Cypress CY8C27243-24PVXIT to view detailed technical specifications.
