CYPRESS

CY8C29666-24PVXI

Datasheet

8-bit MCU, 24MHz, 32KB FLASH, 2KB RAM, 12-ADC, I2C/SPI/UART, SSOP-48

Cypress

CY8C29666-24PVXI

Name: CY8C29666-24PVXI Cypress
Brand: Cypress
SKU: CY8C29666-24PVXI

8-bit MCU, 24MHz, 32KB FLASH, 2KB RAM, 12-ADC, I2C/SPI/UART, SSOP-48

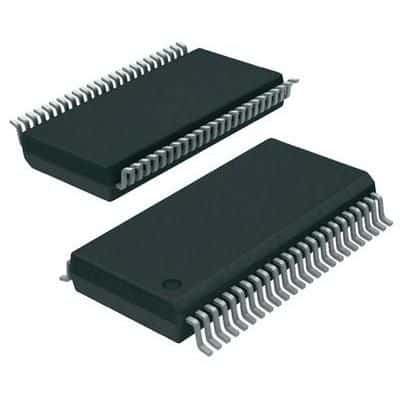

CMOS Multifunction Peripheral IC featuring an 8-bit M8C core architecture operating at up to 24MHz. This device offers 32KB FLASH memory, 2KB RAM, and 12 ADC channels. Interfaces include I2C, SPI, UART, USART, GPIO, and USB, with 44 I/Os available. Packaged in a 48-pin SSOP (PDSO-48) with Tin, Gold, Matte contact plating, it operates from 3V to 5.25V within an industrial temperature range of -40°C to 85°C.

Frequency24MHz

PackageSSOP

Quick Jump:

Technical Specifications

Cypress CY8C29666-24PVXI technical specifications.

General

Access Time	24us
Package/Case	SSOP
Contact Plating	Tin, Gold, Matte
Core Architecture	M8C
Data Bus Width	8b
Frequency	24MHz
Height	2.8mm
Interface	I2C, SPI, UART, USART, GPIO, USB
JESD-30 Code	R-PDSO-G48
Lead Free	Lead Free
Length	16mm
Max Frequency	24MHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.25V
Memory Size	32KB
Memory Type	FLASH,
Min Supply Voltage	3V
Moisture Sensitivity Level	3
Number of ADC Channels	12
Number of I/Os	44
Number of Timers/Counters	1
Oscillator Type	Internal
Package Body Material	Plastic
Package Quantity	30
Package Shape	Rectangular
Packaging	Rail/Tube
Peak Reflow Temperature (Cel)	260°C
Peripherals	POR, PWM, WDT, I2C
Radiation Hardening	No
RAM Size	2KB
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	PSOC®1 CY8C29xxx
Surface Mount	Yes
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	Gold
Terminal Form	Gull Wing
Terminal Position	DUAL
Time @ Peak Reflow Temperature-Max (s)	20s
Watchdog Timer	Yes
Weight	0.021175oz
Width	7.6mm
