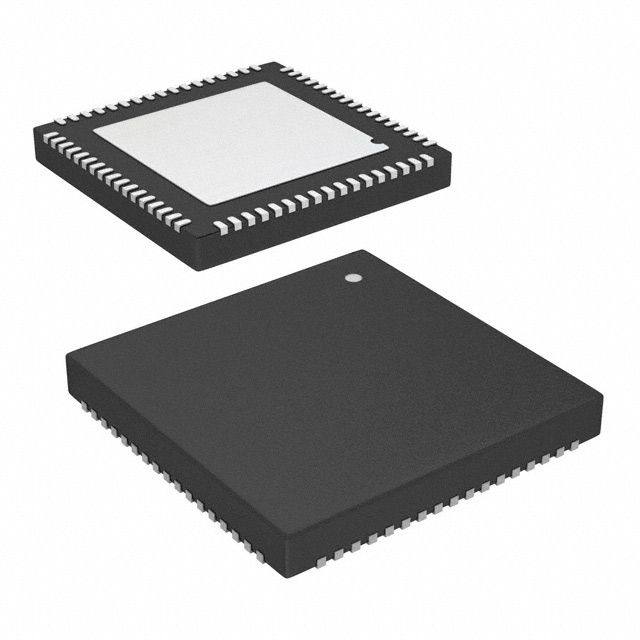

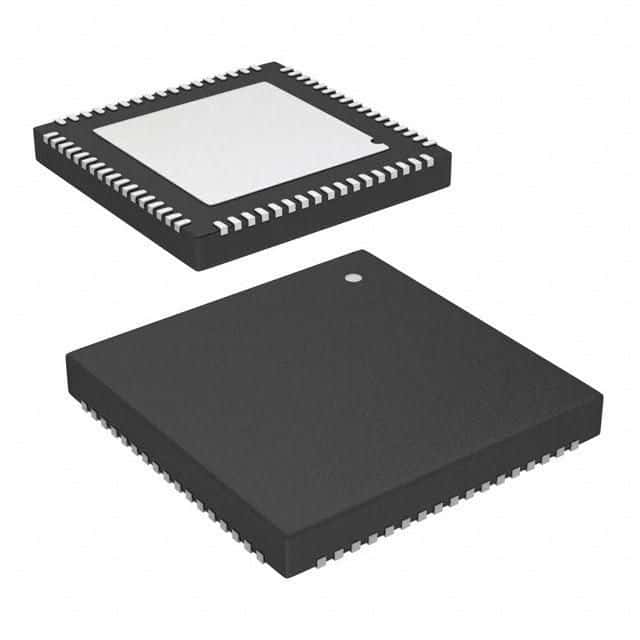

8-bit microcontroller featuring an 8051 core architecture, operating at up to 67MHz. This CMOS integrated circuit offers 64KB of FLASH memory and 8KB of RAM, with 38 general-purpose I/Os, including 62 programmable I/Os. Integrated peripherals include POR, PWM, WDT, DMA, LCD, and CapSense, with support for I2C, USB, CAN, SPI, UART, USART, LIN, and EBI/EMI interfaces. Designed for a supply voltage range of 1.71V to 5.5V, it operates from -40°C to 85°C and is packaged in a lead-free QFN tray.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY8C3866LTI-209 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY8C3866LTI-209 technical specifications.
| Package/Case | QFN |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 67MHz |
| Interface | I2C, USB, CAN, SPI, UART, USART, LIN, EBI/EMI |
| Lead Free | Lead Free |
| Max Frequency | 67MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.71V |
| Number of GPIO | 38 |
| Number of I/Os | 38 |
| Number of Programmable I/O | 62 |
| Number of Timers/Counters | 4 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA, LCD, CapSense |
| RAM Size | 8KB |
| RoHS Compliant | Yes |
| Series | PSOC® 3 CY8C38xx |
| RoHS | Compliant |
