32-bit ARM Cortex-M3 microcontroller with 67MHz frequency, 256KB FLASH and 64KB RAM. Features include I2C, SPI, USB, UART, and USART interfaces, 38 GPIO, 4 timers/counters, and 2 ADC channels. Operates from 1.71V to 5.5V, with a temperature range of -40°C to 85°C. CMOS technology, QFN package with gold contact plating. Includes POR, PWM, WDT, DMA, LCD, and CapSense peripherals.
Frequency67MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C5268LTI-LP030 technical specifications.
General
| Package/Case | QFN |
| Contact Plating | Gold |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 67MHz |
| Interface | I2C, SPI, USB, UART, USART |
| Lead Free | Lead Free |
| Max Frequency | 67MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.71V |
| Number of ADC Channels | 2 |
| Number of GPIO | 38 |
| Number of I/Os | 38 |
| Number of Timers/Counters | 4 |
| Oscillator Type | Internal |
| Package Quantity | 260 |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, WDT, DMA, LCD, CapSense |
| Radiation Hardening | No |
| RAM Size | 64KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PSOC® 5 CY8C52LP |
| Technology | CMOS |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY8C5268LTI-LP030 Datasheet
Download the complete datasheet for Cypress CY8C5268LTI-LP030 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

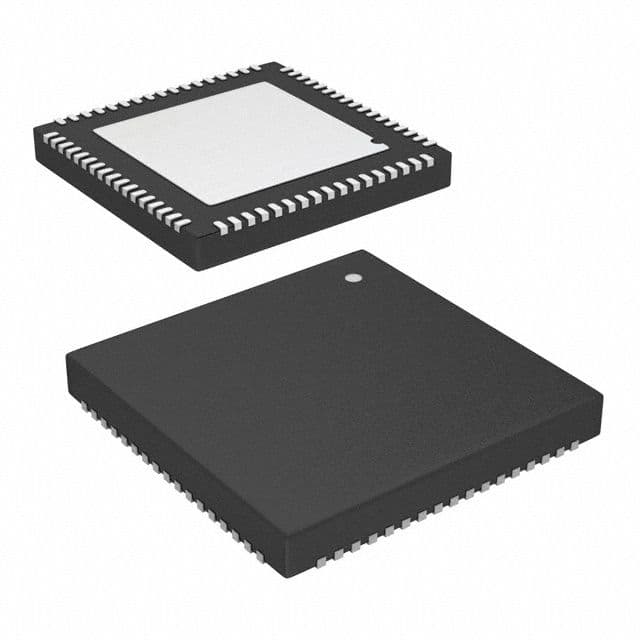

Product Images
