Multifunction peripheral IC featuring a 32-bit ARM core operating up to 67MHz. This component offers 64KB RAM and 256KB FLASH memory, with 36 general-purpose I/O pins and 70 programmable I/O pins. Integrated peripherals include I2C, SPI, USB, UART, USART, POR, PWM, WDT, DMA, LCD, and CapSense. The device operates from a 2.7V to 5.5V supply and is housed in a 68-pin QFN package.
Frequency67MHz
PackageQFN
Quick Jump:
Technical Specifications
Cypress CY8C5568LTI-114 technical specifications.
General
| Package/Case | QFN |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 67MHz |
| Interface | I2C, SPI, USB, UART, USART |
| Lead Free | Lead Free |
| Max Frequency | 67MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of GPIO | 36 |
| Number of I/Os | 36 |
| Number of Programmable I/O | 70 |
| Number of Timers/Counters | 4 |
| Oscillator Type | Internal |
| Package Quantity | 260 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, DMA, LCD, CapSense, I2C |
| Radiation Hardening | No |
| RAM Size | 64KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PSOC® 5 CY8C55 |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Cypress CY8C5568LTI-114 Datasheet
Download the complete datasheet for Cypress CY8C5568LTI-114 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

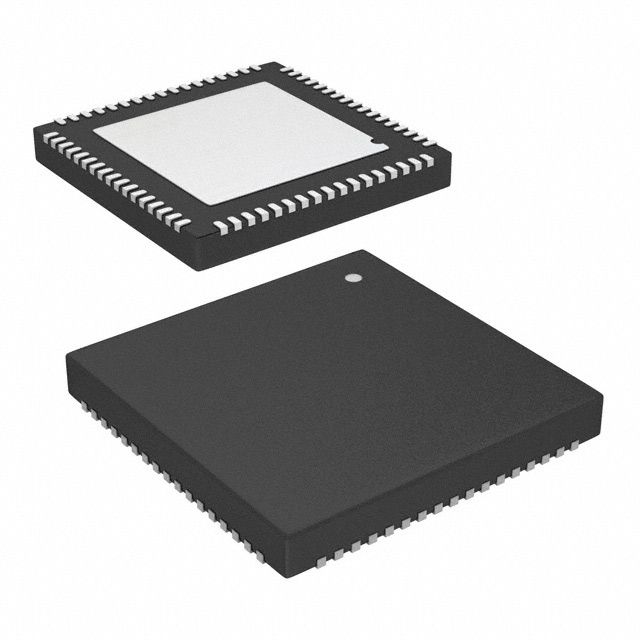

Product Images
