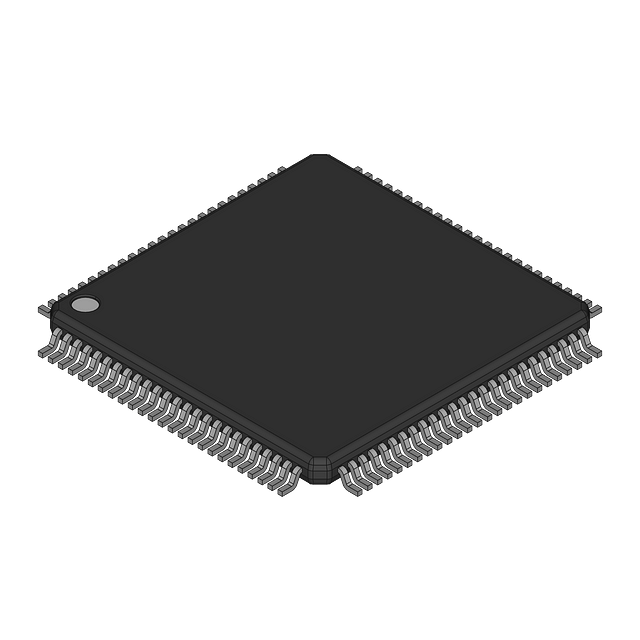

32-bit ARM microcontroller featuring a 67MHz core frequency and 256KB FLASH memory. This peripheral IC offers 62 GPIO, 72 programmable I/Os, and 4 timers/counters. It supports multiple interfaces including I2C, SPI, USB, UART, CAN, and I2S, with integrated peripherals like POR, PWM, WDT, DMA, and CapSense. Operating from 1.71V to 5.5V, this TQFP-packaged component is RoHS compliant and operates across a -40°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY8C5868AXI-LP032 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY8C5868AXI-LP032 technical specifications.
| Package/Case | TQFP |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 67MHz |
| Height | 1.4mm |
| Interface | I2C, SPI, USB, UART, USART, LIN, EBI/EMI, CAN, I2S |
| Lead Free | Lead Free |
| Length | 16mm |
| Max Frequency | 67MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.71V |
| Number of ADC Channels | 2 |
| Number of GPIO | 62 |
| Number of I/Os | 62 |
| Number of Programmable I/O | 72 |
| Number of Timers/Counters | 4 |
| Operating Supply Voltage | 1.8V |
| Oscillator Type | Internal |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, WDT, DMA, LCD, CapSense, LVD, I2C |
| Radiation Hardening | No |
| RAM Size | 64KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PSOC® 5 CY8C58LP |
| Technology | CMOS |
| Watchdog Timer | Yes |
| Weight | 0.023175oz |
| RoHS | Compliant |
