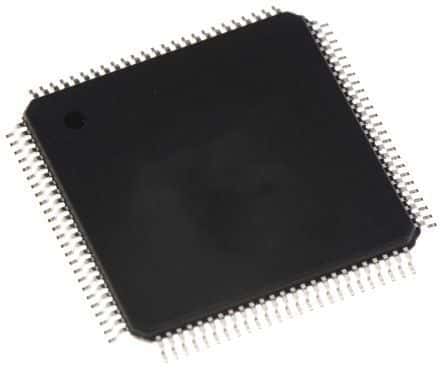

32-bit ARM Cortex-M3 microcontroller with 67MHz operation, featuring 256KB FLASH and 64KB RAM. Offers 62 programmable I/Os and 72 total I/Os, supporting I2C, SPI, USB, CAN, UART, USART, LIN, EBI/EMI, and I2S interfaces. Includes 4 timers/counters, internal oscillator, and peripherals like POR, PWM, WDT, DMA, LVD, I2C, and LCD. Packaged in a 100-pin TQFP with gold contact plating, operating from 1.71V to 5.5V, with a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Cypress CY8C5868AXI-LP035 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Cypress CY8C5868AXI-LP035 technical specifications.
| Package/Case | TQFP |
| Contact Plating | Gold |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 67MHz |
| Height | 1.4mm |
| Interface | I2C, SPI, USB, CAN, UART, USART, LIN, EBI/EMI, I2S |
| Lead Free | Lead Free |
| Length | 16mm |
| Max Frequency | 67MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.71V |
| Number of GPIO | 62 |
| Number of I/Os | 72 |
| Number of Programmable I/O | 62 |
| Number of Timers/Counters | 4 |
| Oscillator Type | Internal |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Peripherals | POR, PWM, WDT, DMA, LVD, I2C, LCD |
| Radiation Hardening | No |
| RAM Size | 64KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PSOC® 5 CY8C58 |
| Technology | CMOS |
| Watchdog Timer | Yes |
| Width | 16mm |
| RoHS | Compliant |
