CMOS LED driver IC featuring an M8C core architecture with an 8-bit data bus. Supports I2C, SPI, IrDA, UART, USART, and USB interfaces, operating from a 4.75V to 5.25V supply. Offers 10mA high-level and 25mA low-level output current, with 16KB FLASH and 1KB RAM memory. This surface mount device is housed in an 8mm x 8mm QFN package and operates at up to 48MHz.
Frequency48MHz
PackageQFN
Current25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CY8CLED03D02-56LTXI technical specifications.
General
Package/Case
QFN
Contact Plating
Tin, Gold, Matte
Core Architecture
M8C
Data Bus Width
8b
Height
1mm
High Level Output Current
10mA
Interface
I2C, SPI, IrDA, UART, USART, USB
Lead Free
Lead Free
Length
8mm
Low Level Output Current
25mA
Max Frequency
48MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
4.75V
Mount
Surface Mount
Number of I/Os
14
Operating Supply Current
16mA
Oscillator Type
Internal
Package Quantity
260
Packaging
Tray
Peripherals
POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
1KB
RoHS Compliant
Yes
Series
PowerPSoC® CY8CLED
Supply Current
25mA
Technology
CMOS
Weight
0.006751oz
Width
8mm
Compliance
RoHS
Compliant
Datasheet
Cypress CY8CLED03D02-56LTXI Datasheet
Download the complete datasheet for Cypress CY8CLED03D02-56LTXI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

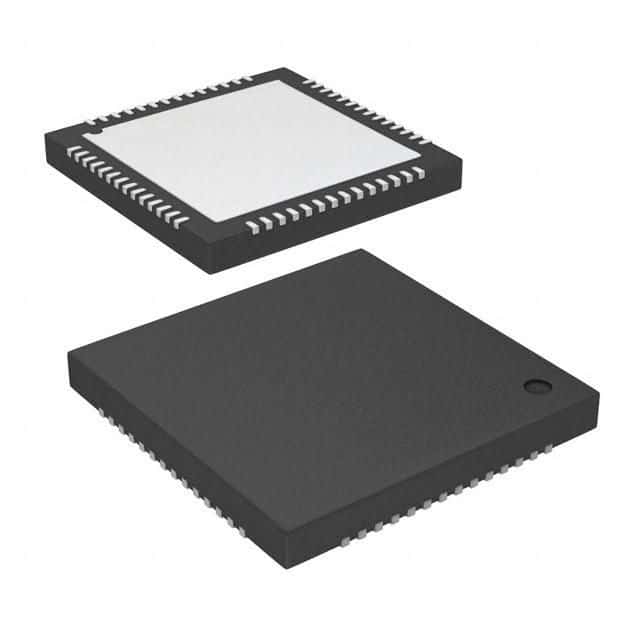

Product Images
