9Mb Dual-Port SRAM with 4ns access time and 167MHz maximum frequency. Features a 128K x 72-bit organization, 1.7V to 1.9V operating supply voltage, and a synchronous parallel interface. Packaged in a 484-ball FBGA with lead-free, RoHS-compliant construction. Designed for surface mounting with a 1mm pitch.
Frequency167MHz
PackageFBGA
Current700mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Cypress CYD09S72V18-167BBXC technical specifications.
General
Access Time
4ns
Access Time-Max
4ns
Address Bus Width
17b
Package/Case
FBGA
Density
9Mb
Frequency
167MHz
Interface
Parallel
Lead Free
Lead Free
Max Frequency
167MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
1.9V
Memory Size
9Mb
Memory Type
SDR, , Volatile, SRAM
Min Supply Voltage
1.7V
Mount
Surface Mount
Number of Ports
2
Number of Words
128000
Operating Supply Voltage
1.8V
Package Quantity
60
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
700mA
Supply Voltage-Nom
1.8V
Sync/Async
Synchronous
Word Size
72b
Compliance
RoHS
Compliant
Datasheet
Cypress CYD09S72V18-167BBXC Datasheet
Download the complete datasheet for Cypress CYD09S72V18-167BBXC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

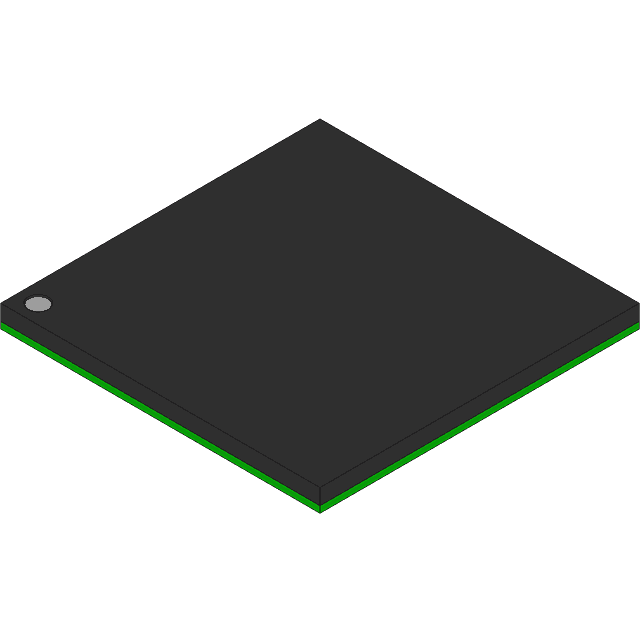

Product Images
