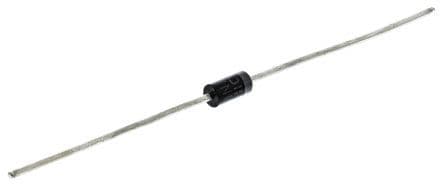

1N4003-T

1A 200V Rectifier Diode, Silicon, DO-41

General purpose rectifier diode with a 1A average rectified current and 200V repetitive peak reverse voltage. Features a 1A forward current, 30A peak non-repetitive surge current, and a maximum reverse current of 5µA. This silicon diode is housed in a DO-41 plastic package with a diameter of 2.72mm and a length of 5.21mm. Operating temperature range is -65°C to 150°C, with a capacitance of 15pF. RoHS compliant and lead-free.

PackageDO-41

Capacitance15pF

Current Rating1A

PolarityStandard

Quick Jump:

Technical Specifications

Diodes 1N4003-T technical specifications.

General

Average Rectified Current	1A
Capacitance	15pF
Package/Case	DO-41
Current Rating	1A
Diameter	2.72mm
Forward Current	1A
Height	2.72mm
Lead Free	Lead Free
Length	5.21mm
Max Forward Surge Current (Ifsm)	30A
Max Operating Temperature	150°C
Min Operating Temperature	-65°C
Max Repetitive Reverse Voltage (Vrrm)	200V
Max Reverse Current	5uA
Max Reverse Voltage (DC)	200V
Max Surge Current	30A
Output Current	1A
Package Quantity	5000
Packaging	Tape and Reel
Peak Non-Repetitive Surge Current	30A
Polarity	Standard
Radiation Hardening	No
Reverse Voltage (DC)	200V
RoHS Compliant	Yes
DC Rated Voltage	200V
Weight	0.010582oz
Width	2.72mm
