The 1N5819M-13 is a surface mount general purpose rectifier with a maximum operating temperature of 125°C and a minimum operating temperature of -60°C. It has a maximum reverse voltage of 40V and a current rating of 1A. The device is packaged in a MELF package and is available on tape and reel. The 1N5819M-13 is not RoHS compliant.
PackageMELF
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes 1N5819M-13 technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | MELF |
| Current Rating | 1A |
| Lead Free | Exempt |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -60°C |
| Max Reverse Voltage (DC) | 40V |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 25A |
| Reverse Recovery Time | 3us |
| RoHS Compliant | No |
| DC Rated Voltage | 40V |
Compliance
| RoHS | Not Compliant |
Datasheet
Diodes 1N5819M-13 Datasheet
Download the complete datasheet for Diodes 1N5819M-13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

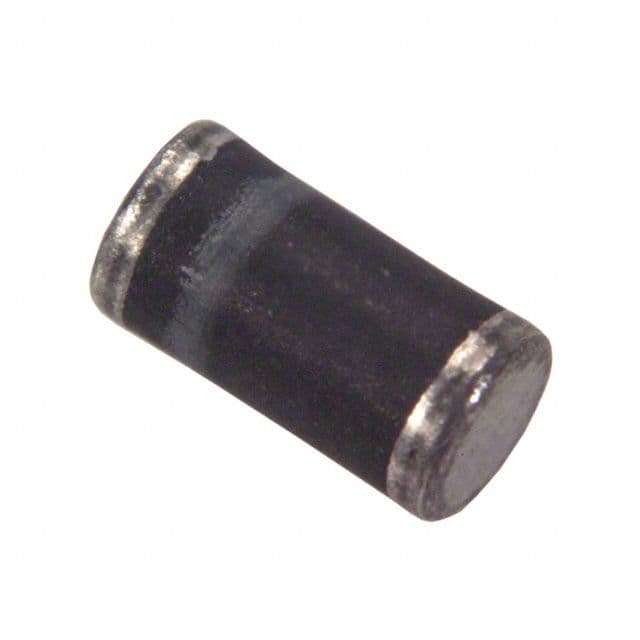

Product Images
