N-Channel Silicon Metal-Oxide Semiconductor FET, a single-element JFET designed for small signal applications. Features a 60V Drain to Source Breakdown Voltage (Vdss) and a continuous drain current (ID) of 115mA. Offers a low Drain-source On Resistance (Rds On) of 7.5 Ohms. Operates within a temperature range of -55°C to 150°C, with a maximum power dissipation of 330mW. Packaged in a SOT-23 surface mount case with tin, matte contact plating, and supplied on tape and reel.
PackageSOT-23
Current Rating115mA
MountingSurface Mount
PolarityN-CHANNEL
Quick Jump:
Technical Specifications
Diodes 2N7002TA technical specifications.
General
Package/Case
SOT-23
Contact Plating
Tin, Matte
Continuous Drain Current (ID)
115mA
Current Rating
115mA
Drain to Source Breakdown Voltage
60V
Drain to Source Resistance
7.5R
Drain to Source Voltage (Vdss)
60V
Drain-source On Resistance-Max
7.5R
Fall Time
5.6ns
Gate to Source Voltage (Vgs)
20V
Height
1mm
Input Capacitance
50pF
Lead Free
Lead Free
Length
2.9mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
330mW
Mount
Surface Mount
Nominal Vgs
2.5V
Number of Channels
1
Number of Elements
1
Package Quantity
1
Packaging
Tape and Reel
Polarity
N-CHANNEL
Power Dissipation
300mW
Radiation Hardening
No
Rds On Max
7.5R
Reach SVHC Compliant
No
RoHS Compliant
Yes
Threshold Voltage
2.5V
Turn-Off Delay Time
11ns
Turn-On Delay Time
7ns
DC Rated Voltage
60V
Weight
0.000282oz
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Diodes 2N7002TA Datasheet
Download the complete datasheet for Diodes 2N7002TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

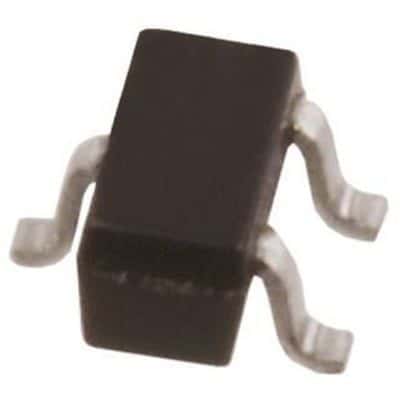

Product Images
