CMOS AND Gate IC, featuring a single 2-input AND function with Schmitt trigger inputs. This surface mount device operates from a 2V to 5.5V supply, offering a typical propagation delay of 7.9ns. The PDSO5 package, also known as SOT-353, provides push-pull outputs with a high level output current of -8mA and a low level output current of 8mA. Designed for a wide operating temperature range of -40°C to 125°C, this RoHS compliant component is supplied on tape and reel.
PackageSOT-353
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes 74AHC1G08SE-7 technical specifications.
General
Package/Case
SOT-353
Contact Plating
Tin, Matte
Height
5.5mm
High Level Output Current
-8mA
Input Type
SCHMITT TRIGGER
Lead Free
Lead Free
Length
2.2mm
Logic Function
AND GATE
Low Level Output Current
8mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Gates
1
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
8mA
Output Type
PUSH-PULL
Output Voltage
5V
Package Quantity
3000
Packaging
Tape and Reel
Propagation Delay
7.9ns
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
Yes
Series
74AHC
Technology
CMOS
Turn-On Delay Time
7.9ns
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Diodes 74AHC1G08SE-7 Datasheet
Download the complete datasheet for Diodes 74AHC1G08SE-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

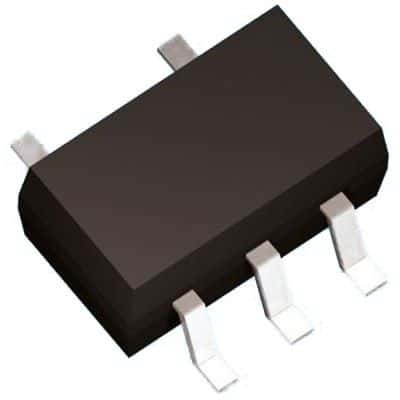

Product Images
