CMOS buffer/line driver IC featuring a single 1-bit buffer with a true output. This surface mount device operates from a 2V to 5.5V supply voltage, with a nominal 5.5V. It offers a 3-state, push-pull output type and supports high level output current of -8mA and low level output current of 8mA. The input is Schmitt Trigger enabled, and the device boasts a propagation delay of 16.5ns. Packaged in a compact SOT-353 (PDSO5) with tin, matte contact plating, this RoHS compliant component is designed for a wide operating temperature range of -40°C to 125°C.
PackageSOT-353
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Diodes 74AHC1G126SE-7 technical specifications.
General
Package/Case
SOT-353
Contact Plating
Tin, Matte
Height
1mm
High Level Output Current
-8mA
Input Type
SCHMITT TRIGGER
Lead Free
Lead Free
Length
2.2mm
Logic Function
Buffer, Inverting
Low Level Output Current
8mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits per Element
1
Number of Channels
1
Number of Elements
1
Number of Functions
1
Number of Input Lines
1
Number of Inputs
1
Number of Output Lines
1
Number of Outputs
1
Operating Supply Current
10uA
Output Type
3-STATE, PUSH-PULL
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
16.5ns
Quiescent Current
1uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
Yes
Series
74AHC
Supply Voltage-Nom
5.5V
Technology
CMOS
Turn-On Delay Time
14.5ns
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Diodes 74AHC1G126SE-7 Datasheet
Download the complete datasheet for Diodes 74AHC1G126SE-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

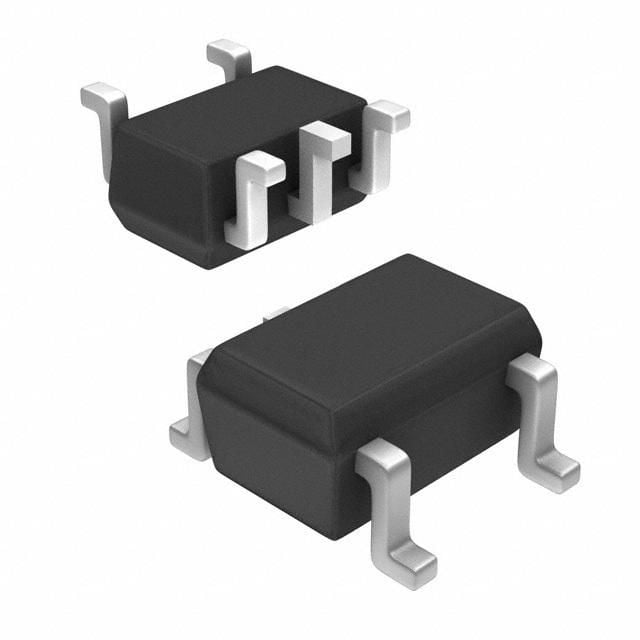

Product Images
