74AHC1G86SE-7

Datasheet

XOR Gate, 2-Input, CMOS, SOT-353, Schmitt Trigger

Diodes

74AHC1G86SE-7

Name: 74AHC1G86SE-7 Diodes
Brand: Diodes
SKU: 74AHC1G86SE-7

XOR Gate, 2-Input, CMOS, SOT-353, Schmitt Trigger

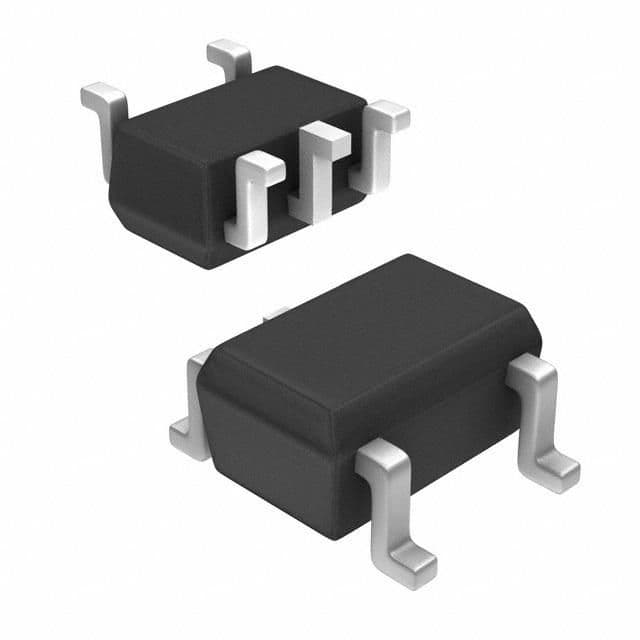

CMOS XOR Gate IC, featuring a single 2-input XOR function with Schmitt trigger inputs. Operates from a 2V to 5.5V supply voltage, offering a propagation delay of 8.8ns and a turn-on delay of 11.5ns. This surface mount component is housed in a compact SOT-353 package (1mm height, 2.2mm length, 1.35mm width) with tin-matte contact plating. Delivers 8mA output current at both low and high levels, with a quiescent current of 1uA. Rated for operation between -40°C and 125°C, this RoHS compliant component is supplied on tape and reel.

PackageSOT-353

MountingSurface Mount

Quick Jump:

Technical Specifications

Diodes 74AHC1G86SE-7 technical specifications.

General

Package/Case	SOT-353
Contact Plating	Tin, Matte
Height	1mm
High Level Output Current	-8mA
Input Type	SCHMITT TRIGGER
Lead Free	Lead Free
Length	2.2mm
Logic Function	XOR GATE, OR GATE
Low Level Output Current	8mA
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.5V
Min Supply Voltage	2V
Mount	Surface Mount
Number of Circuits	1
Number of Elements	1
Number of Gates	1
Number of Input Lines	2
Number of Inputs	2
Number of Output Lines	1
Number of Outputs	1
Output Current	8mA
Output Type	PUSH-PULL
Package Quantity	3000
Packaging	Tape and Reel
Propagation Delay	8.8ns
Quiescent Current	1uA
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Schmitt Trigger Input	Yes
Series	74AHC
Technology	CMOS
Turn-On Delay Time	11.5ns
Width	1.35mm
