CMOS 2-input NAND gate IC, featuring a single function and one gate. Operates with a supply voltage range of 1.65V to 5.5V, offering a propagation delay of 4ns and a turn-on delay time of 3.4ns. This surface mount component is housed in a SOT-25 package with tin, matte contact plating. Maximum operating temperature reaches 125°C, with high and low level output currents of -32mA and 32mA respectively.
PackageSOT-25
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes 74LVC1G00W5-7 technical specifications.
General
Package/Case
SOT-25
Contact Plating
Tin, Matte
Height
1.45mm
High Level Output Current
-32mA
Lead Free
Lead Free
Length
3.1mm
Logic Function
NAND GATE
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Functions
1
Number of Gates
1
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Current
-50mA
Output Type
PUSH-PULL, TOTEM POLE
Output Voltage
6.5V
Package Quantity
3000
Packaging
Tape and Reel
Propagation Delay
4ns
Quiescent Current
200uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Schmitt Trigger Input
No
Series
74LVC
Supply Voltage-Nom
5.5V
Technology
CMOS
Turn-On Delay Time
3.4ns
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Diodes 74LVC1G00W5-7 Datasheet
Download the complete datasheet for Diodes 74LVC1G00W5-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

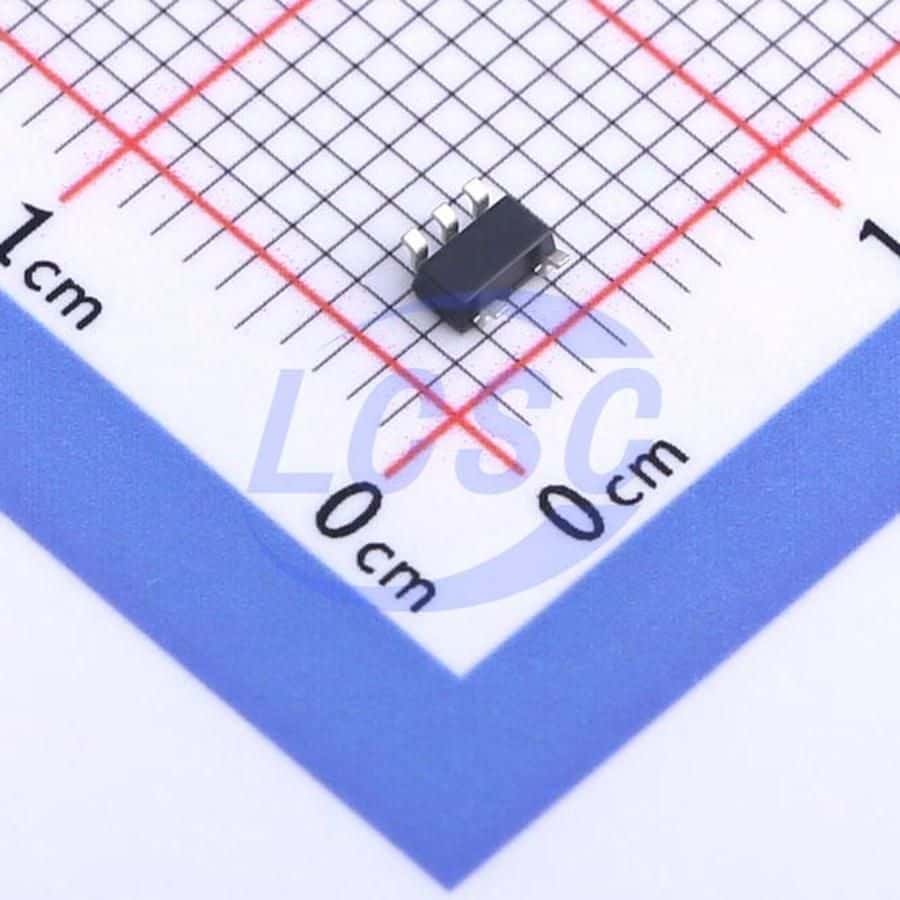

Product Images
