Technical Specifications
Diodes 74LVC1G10FW4-7 technical specifications.
General
| Package/Case | DFN |
| Contact Plating | Gold |
| High Level Output Current | 32mA |
| Logic Function | NAND GATE |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Inputs | 3 |
| Number of Outputs | 1 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Propagation Delay | 3.6ns |
| Quiescent Current | 40uA |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
Compliance
| RoHS | Compliant |
Datasheet
Diodes 74LVC1G10FW4-7 Datasheet
Download the complete datasheet for Diodes 74LVC1G10FW4-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

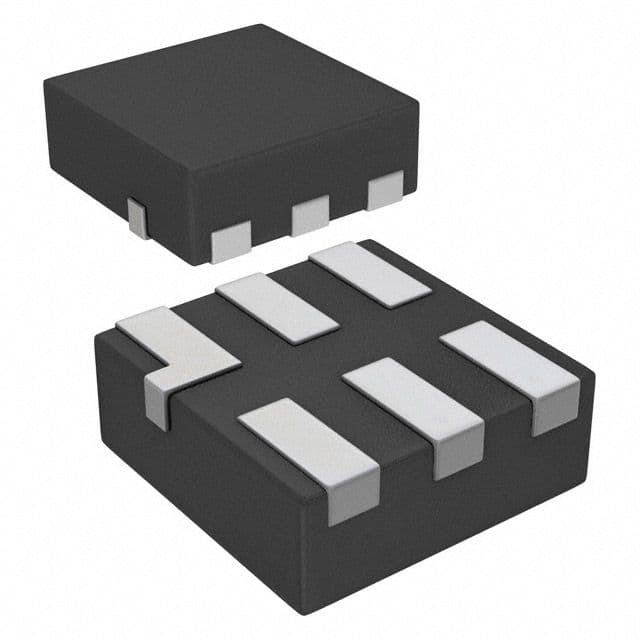

Product Images
