Single-bit, 3-state, push-pull output buffer/line driver for CMOS logic applications. Features a 1.65V to 5.5V operating supply voltage range with a nominal 5.5V. Offers 32mA high and low level output current, with a propagation delay of 3.4ns. Surface mountable in a compact SOT-353 package (2.2mm x 1.35mm x 1mm). Operating temperature range from -40°C to 125°C.
PackageSOT-353
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Diodes 74LVC1G126SE-7 technical specifications.
General
Package/Case
SOT-353
Height
1mm
High Level Output Current
-32mA
Lead Free
Lead Free
Length
2.2mm
Logic Function
Buffer, Inverting
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
10uA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits per Element
1
Number of Channels
1
Number of Elements
1
Number of Functions
1
Number of Gates
1
Number of Input Lines
1
Number of Inputs
1
Number of Output Lines
1
Number of Outputs
1
Operating Supply Current
10uA
Output Type
3-STATE, PUSH-PULL
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
3.4ns
Quiescent Current
100nA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Supply Voltage-Nom
5.5V
Technology
CMOS
Turn-On Delay Time
12ns
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Diodes 74LVC1G126SE-7 Datasheet
Download the complete datasheet for Diodes 74LVC1G126SE-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

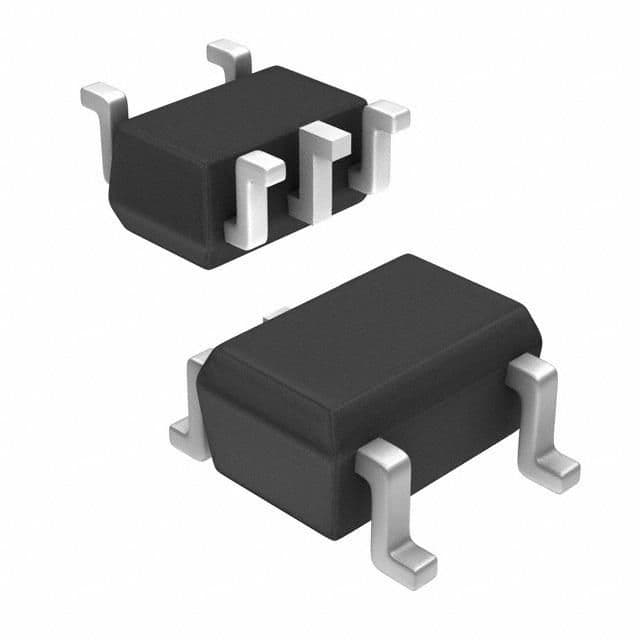

Product Images
