DIODES

74LVC2G17DW-7

Datasheet

2-Ch Schmitt Trigger Buffer, 1.65-5.5V, CMOS, SOT-363

Diodes

74LVC2G17DW-7

Name: 74LVC2G17DW-7 Diodes
Brand: Diodes
SKU: 74LVC2G17DW-7

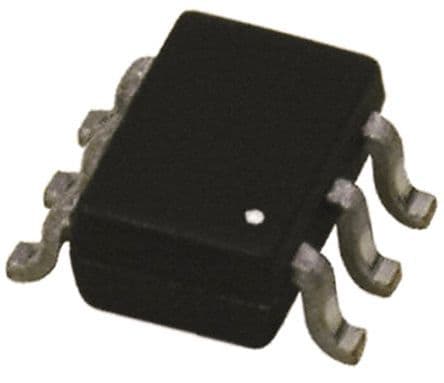

2-Ch Schmitt Trigger Buffer, 1.65-5.5V, CMOS, SOT-363

Dual 1-input Schmitt Trigger Buffer, CMOS technology, operating from 1.65V to 5.5V. Features push-pull output with ±32mA high/low output current. Surface mountable in a 6-pin SOT-363 package. Offers 13.1ns propagation delay and operates across a -40°C to 125°C temperature range. RoHS and REACH SVHC compliant.

PackageSOT-363

MountingSurface Mount

PolarityNon-Inverting

Quick Jump:

Technical Specifications

Diodes 74LVC2G17DW-7 technical specifications.

General

Package/Case	SOT-363
High Level Output Current	-32mA
Logic Function	Schmitt Trigger, Buffer, Inverting
Low Level Output Current	32mA
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.5V
Min Supply Voltage	1.65V
Mount	Surface Mount
Number of Bits per Element	1
Number of Channels	2
Number of Elements	2
Number of Input Lines	1
Number of Inputs	2
Number of Output Lines	1
Number of Outputs	2
Operating Supply Current	10uA
Output Type	PUSH-PULL
Package Quantity	1
Packaging	Tape and Reel
Polarity	Non-Inverting
Propagation Delay	13.1ns
Quiescent Current	40uA
Radiation Hardening	No
Reach SVHC Compliant	Yes
RoHS Compliant	Yes
Series	74LVC
Technology	CMOS
Turn-On Delay Time	13.1ns
Weight	0.000212oz
