Diodes
AL3159FSG-7
Switched Capacitor Converter, 0.27A, 1200kHz Switching Freq-Max, 3 X 3 MM, GREEN, QFN-20
Frequency1.2MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes AL3159FSG-7 technical specifications.
General
Package/Case
QFN
Contact Plating
Gold
Frequency
1.2MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Outputs
9
Operating Frequency
1.2 MHz
Output Current
20mA
Output Current per Channel
20mA
Output Voltage
11V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Topology
Charge Pump
Weight
0.004339oz
Compliance
RoHS
Compliant
Datasheet
Diodes AL3159FSG-7 Datasheet
Download the complete datasheet for Diodes AL3159FSG-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

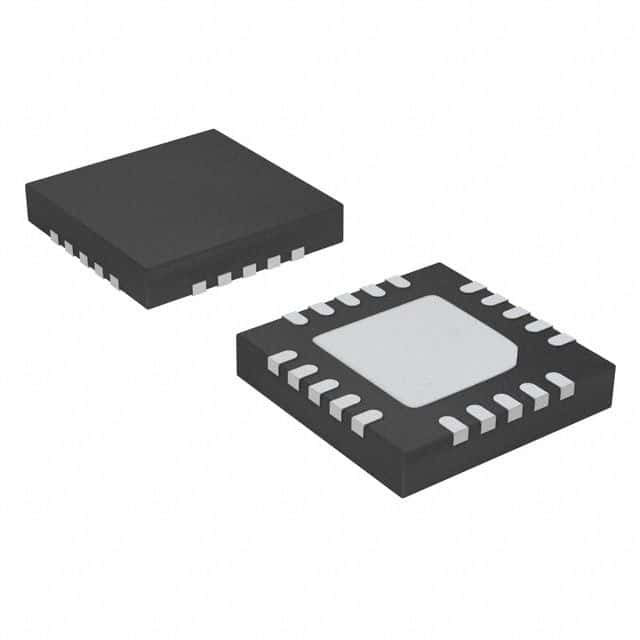

Product Images
