Technical Specifications
Diodes AL5812MP-13 technical specifications.
General
Package/Case
MSOP
Contact Plating
Tin, Matte
Dimming
PWM
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
366mW
Max Supply Current
500uA
Max Supply Voltage
60V
Mount
Surface Mount
Number of Channels
1
Number of Outputs
1
Output Current per Channel
150mA
Output Voltage
60V
Package Quantity
2500
Packaging
Tape and Reel
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Diodes AL5812MP-13 Datasheet
Download the complete datasheet for Diodes AL5812MP-13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

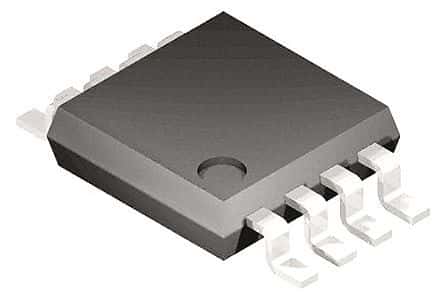

Product Images
