SOP-8 package switching regulator, voltage-mode control, offering up to 2.4A output current. Features adjustable output voltage from 3V to 17V with a maximum input voltage of 6V and a minimum of 2.5V. Achieves up to 91% efficiency with a maximum switching frequency of 360kHz. Operates with a low quiescent current of 80µA and a supply voltage range of 1.2V to 6V. Surface mountable, RoHS compliant, and designed for boost topology.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes AP1609SG-13 technical specifications.
General
| Package/Case | SOP |
| Current - Output 1 | 2.4A |
| Efficiency | 91% |
| Height | 1.5mm |
| Lead Free | Lead Free |
| Length | 4.95mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 2.4A |
| Max Output Voltage | 17V |
| Min Output Voltage | 3V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Current | 80uA |
| Operating Supply Voltage | 6V |
| Output Configuration | Positive |
| Output Current | 2.4A |
| Output Type | Adjustable |
| Output Voltage | 17V |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 80uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Boost |
| Voltage - Output 1 | 17V |
| Voltage - Output 2 | 3V |
| Weight | 0.030018oz |
| Width | 3.95mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes AP1609SG-13 Datasheet
Download the complete datasheet for Diodes AP1609SG-13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

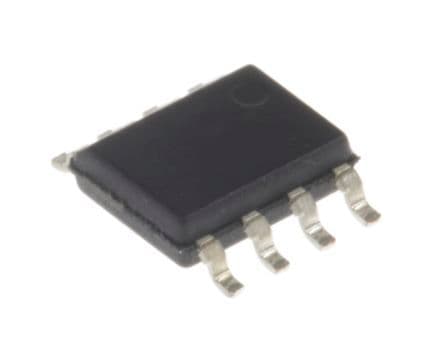

Product Images
