General purpose power supply support circuit featuring a fixed, single-channel reset function. This integrated circuit operates with a supply voltage range of 1V to 5.5V and a maximum supply current of 30µA. It monitors a single voltage with reset threshold voltages between 3.92V and 4.08V, offering an active-low output with a 600ms reset delay. The component is housed in a compact TO-236-3 (SC-59) surface-mount package, measuring 3.1mm in length, 1.7mm in width, and 1.3mm in height, with a maximum power dissipation of 320mW and an operating temperature range of -40°C to 105°C.
PackageTO-236-3
Current30uA
MountingSurface Mount
Power320mW
Quick Jump:
Technical Specifications
Diodes AP1701CWL-7 technical specifications.
General
Package/Case
TO-236-3
Height
1.3mm
Length
3.1mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Power Dissipation
320mW
Max Reset Threshold Voltage
4.08V
Min Reset Threshold Voltage
3.92V
Max Supply Current
30uA
Max Supply Voltage
5.5V
Min Supply Voltage
1V
Mount
Surface Mount
Number of Elements
1
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
30uA
Output
TOTEM-POLE
Overvoltage Threshold
4.08V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
320mW
Reset
Active Low
Reset Delay Time
600ms
Reset Timeout
100ms
RoHS Compliant
Yes
Supply Current
30uA
Threshold Voltage
4V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
3.92V
Watchdog Timer
No
Width
1.7mm
Compliance
RoHS
Compliant
Datasheet
Diodes AP1701CWL-7 Datasheet
Download the complete datasheet for Diodes AP1701CWL-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

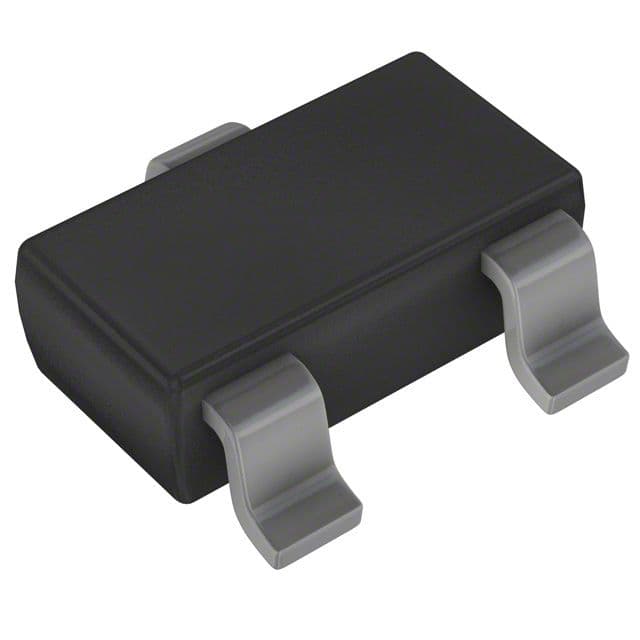

Product Images
