Dual-channel peripheral driver IC featuring 500mA maximum output current per channel. This surface-mount device operates from a 2.7V to 5.5V supply voltage and includes over-temperature and reverse current fault protection. The driver offers a high-side output configuration with a maximum on-state resistance of 135mΩ. Packaged in a green SOP-8, it is RoHS and REACH SVHC compliant.
PackageSOP
Voltage5.5V
Current500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes AP2156SG-13 technical specifications.
General
Package/Case
SOP
Current
500mA
Fault Protection
Over Temperature, Reverse Current
Height
1.5mm
Interface
On/Off
Lead Free
Lead Free
Length
4.95mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Outputs
2
Number of Switches
2
On-state Resistance-Max
135MR
Output Configuration
High Side
Package Quantity
2500
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
800mA
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Voltage
5.5V
Weight
0.030018oz
Width
3.95mm
Compliance
RoHS
Compliant
Datasheet
Diodes AP2156SG-13 Datasheet
Download the complete datasheet for Diodes AP2156SG-13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

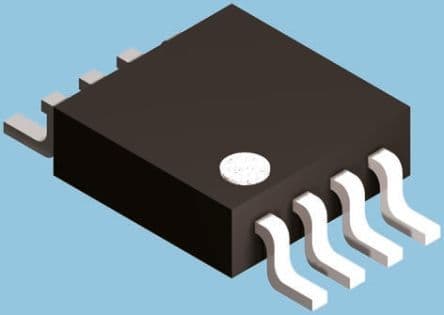

Product Images
