Telecom circuit, a single-function integrated circuit designed for telecommunications applications. Features a 2A maximum output current and a 6V operating voltage. This surface mount component is housed in a SOT-25 package with a 105mΩ maximum on-state resistance. Operating temperature range spans from -40°C to 85°C, with a maximum power dissipation of 750mW. Lead-free and RoHS compliant, supplied in tape and reel packaging.
PackageSOT-25
Voltage6V
Current2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes AP2280-2WG-7 technical specifications.
General
Package/Case
SOT-25
Current
2A
Height
1.3mm
Interface
On/Off
Lead Free
Lead Free
Length
3.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Power Dissipation
750mW
Mount
Surface Mount
Number of Outputs
1
On-state Resistance-Max
105MR
Output Configuration
High Side
Output Current
0A
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
750mW
Radiation Hardening
No
Rated Current-Max
2A
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Voltage
6V
Weight
0.001058oz
Width
1.7mm
Compliance
RoHS
Compliant
Datasheet
Diodes AP2280-2WG-7 Datasheet
Download the complete datasheet for Diodes AP2280-2WG-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

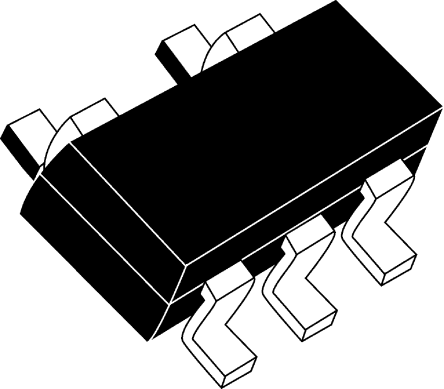

Product Images
