DIODES

AP431ASAG-7

Datasheet

Adj. Voltage Ref IC, 2.495V, 36V, 200mA, SOT-23, SM

Diodes

AP431ASAG-7

Name: AP431ASAG-7 Diodes
Brand: Diodes
SKU: AP431ASAG-7

Adj. Voltage Ref IC, 2.495V, 36V, 200mA, SOT-23, SM

Adjustable Shunt Voltage Reference IC, offering a precise 2.495V output with 0.5% tolerance. This bipolar, three-terminal device supports an adjustable output voltage up to 36V and a maximum output current of 200mA. Designed for surface mounting in a compact SOT-23 package, it operates with a cathode current of 500µA and a maximum input voltage of 36V. The component features a low operating supply current of 10mA and is RoHS compliant.

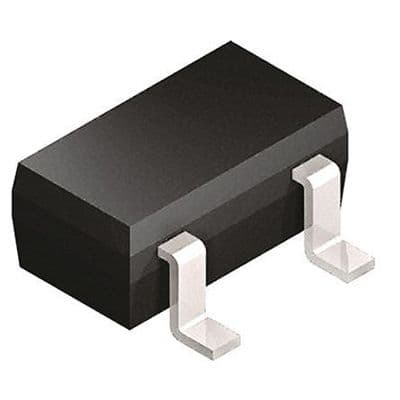

PackageSOT-23

MountingSurface Mount

Quick Jump:

Technical Specifications

Diodes AP431ASAG-7 technical specifications.

General

Package/Case	SOT-23
Cathode Current	500uA
Height	1.1mm
Input Current	10mA
Lead Free	Lead Free
Length	3mm
Max Input Voltage	36V
Max Operating Temperature	85°C
Min Operating Temperature	-20°C
Max Output Current	200mA
Max Output Voltage	36V
Min Output Voltage	2.495V
Max Supply Current	10mA
Mount	Surface Mount
Nominal Supply Current	10mA
Operating Supply Current	10mA
Output Current	200mA
Output Type	Adjustable
Output Voltage	2.495V
Package Quantity	3000
Packaging	Tape and Reel
Radiation Hardening	No
Reach SVHC Compliant	No
Reference Type	Shunt, Adjustable
Reference Voltage	36V
RoHS Compliant	Yes
Tolerance	0.5%
Weight	0.000282oz
Width	1.4mm
