Diodes
AP432SRG-7
Three Terminal Voltage Reference, 1 Output, 1.24V, Trim/Adjustable, PDSO3, GREEN, SOT-23, 3 PIN
PackageTO-236-3
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes AP432SRG-7 technical specifications.
General
Package/Case
TO-236-3
Cathode Current
300uA
Height
1mm
Length
3mm
Max Input Voltage
20V
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Output Current
200mA
Max Output Voltage
20V
Min Output Voltage
1.24V
Mount
Surface Mount
Output Current
200mA
Output Type
Adjustable
Output Voltage
20V
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reference Type
Shunt, Adjustable
RoHS Compliant
Yes
Tolerance
1%
Weight
0.000282oz
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Diodes AP432SRG-7 Datasheet
Download the complete datasheet for Diodes AP432SRG-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

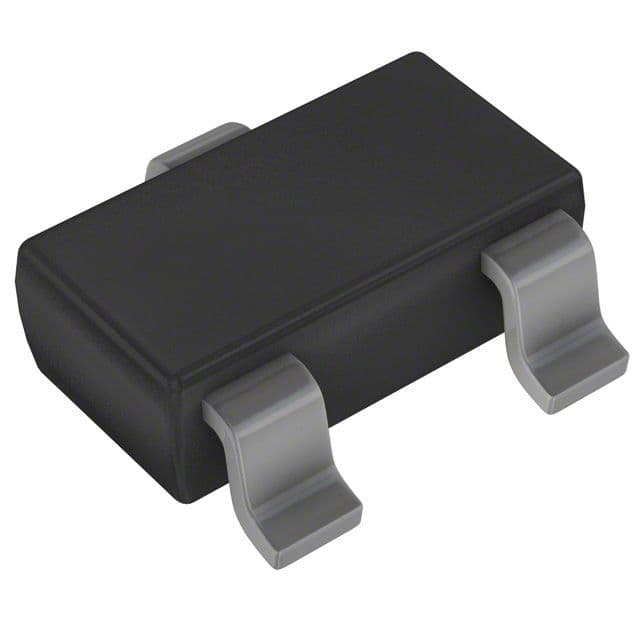

Product Images
