Technical Specifications
Diodes BAS7004TA technical specifications.
General
Average Rectified Current
15mA
Package/Case
TO-236-3
Forward Current
700mA
Height
1mm
Lead Free
Contains Lead
Length
3.05mm
Max Forward Surge Current (Ifsm)
100mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
70V
Max Reverse Current
100nA
Max Reverse Voltage (DC)
70V
Mount
Surface Mount
Packaging
Tape and Reel
Reverse Recovery Time
5ns
RoHS Compliant
No
Weight
0.000282oz
Width
1.4mm
Compliance
RoHS
Not Compliant
Datasheet
Diodes BAS7004TA Datasheet
Download the complete datasheet for Diodes BAS7004TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

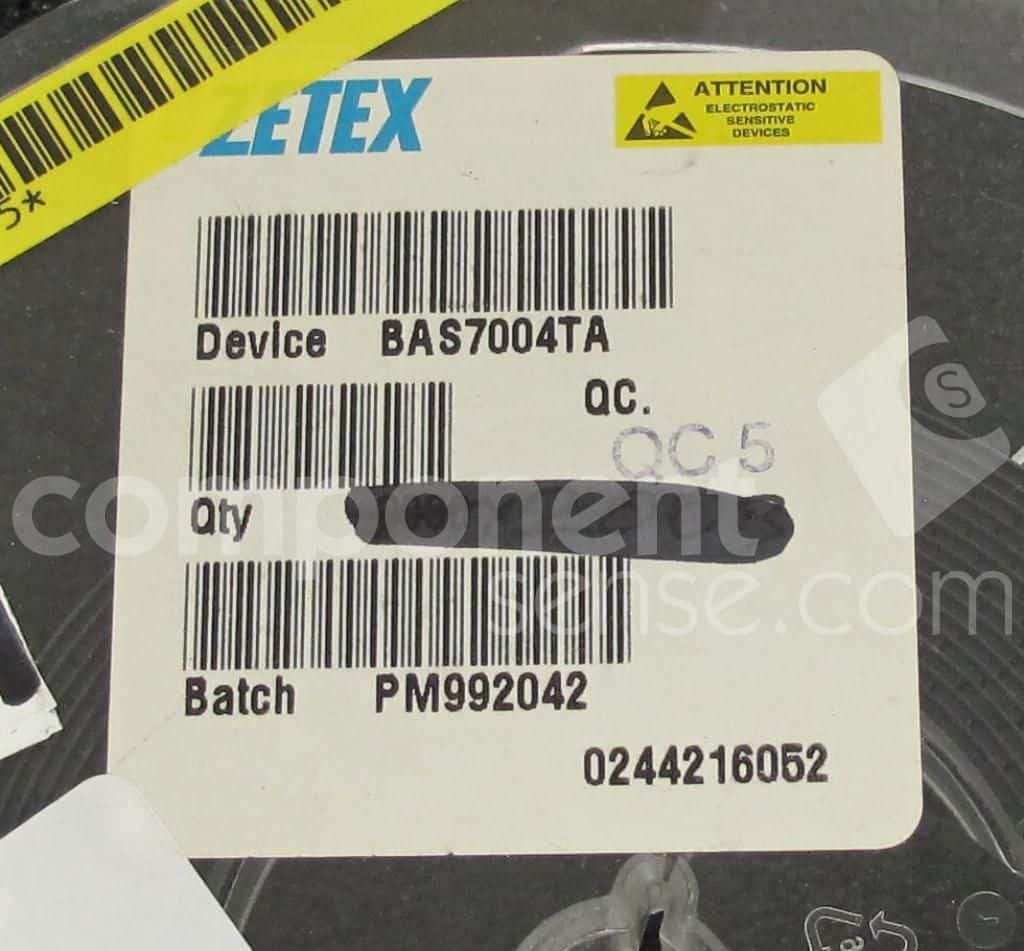

Product Images
