PNP Silicon Bipolar Junction Transistor (BJT) for small signal applications. Features a 45V Collector-Emitter Breakdown Voltage (VCEO) and a maximum collector current of 100mA. Operates with a 200MHz gain bandwidth product and a 200mW power dissipation. Packaged in a SOT-323 surface mount plastic package, this RoHS compliant component offers a wide operating temperature range from -65°C to 150°C.
Frequency200MHz
PackageSOT-323
Current Rating-100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes BC857CW-7-F technical specifications.
General
| Package/Case | SOT-323 |
| Collector Base Voltage (VCBO) | 50V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | -650mV |
| Collector Emitter Voltage (VCEO) | 45V |
| Collector-emitter Voltage-Max | 650mV |
| Contact Plating | Tin, Matte |
| Current Rating | -100mA |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 200MHz |
| Gain Bandwidth Product | 200MHz |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 2.2mm |
| Max Breakdown Voltage | 45V |
| Max Collector Current | 100mA |
| Max Frequency | 200MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| Power Dissipation | 200mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 200MHz |
| DC Rated Voltage | -45V |
| Weight | 0.000212oz |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes BC857CW-7-F Datasheet
Download the complete datasheet for Diodes BC857CW-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

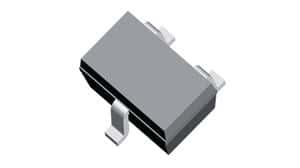

Product Images
