Surface mount Zener diode featuring an 11V Zener voltage with a 5% tolerance. This unidirectional silicon diode offers 250mW power dissipation and a low 100nA maximum reverse leakage current. Packaged in a compact DFN1006-2 (2-pin) with gold contact plating, it operates from -65°C to 150°C and is RoHS compliant.
PackageDFN
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Diodes BZT52C11LP-7 technical specifications.
General
Package/Case
DFN
Contact Plating
Gold
ESD Protection
No
Height
0.47mm
Impedance
20R
Lead Free
Lead Free
Length
1mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
250mW
Max Reverse Current
100nA
Max Reverse Leakage Current
100nA
Mount
Surface Mount
Output Current
50mA
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
250mW
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
5%
DC Rated Voltage
11V
Voltage Tolerance
5%
Weight
3.5E-05oz
Width
0.6mm
Zener Current
5mA
Zener Voltage
11V
Compliance
RoHS
Compliant
Datasheet
Diodes BZT52C11LP-7 Datasheet
Download the complete datasheet for Diodes BZT52C11LP-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

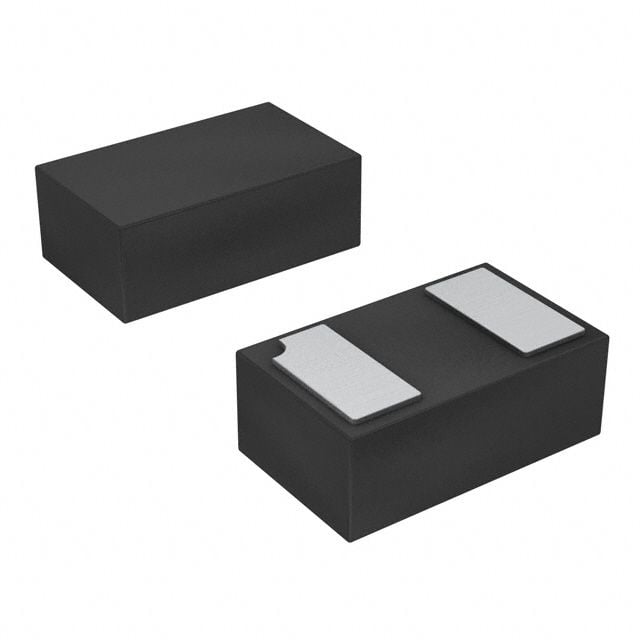

Product Images
