Surface mount Zener diode with a 30V working voltage and 5% voltage tolerance. Features 200mW power dissipation, 80 Ohm impedance, and a maximum reverse leakage current of 100nA. Operates from -65°C to 150°C and is RoHS compliant with tin, matte contact plating. Packaged in tape and reel.
Voltage Rating30V
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Diodes BZT52C30S-7-F technical specifications.
General
Contact Plating
Tin, Matte
ESD Protection
No
Height
1mm
Impedance
80R
Lead Free
Lead Free
Length
1.8mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
200mW
Max Reverse Current
100nA
Max Reverse Leakage Current
100nA
Mount
Surface Mount
Output Current
50mA
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
200mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
7%
DC Rated Voltage
30V
Voltage Tolerance
5%
Weight
0.000173oz
Width
1.4mm
Working Voltage
30V
Zener Current
2mA
Zener Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Diodes BZT52C30S-7-F Datasheet
Download the complete datasheet for Diodes BZT52C30S-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

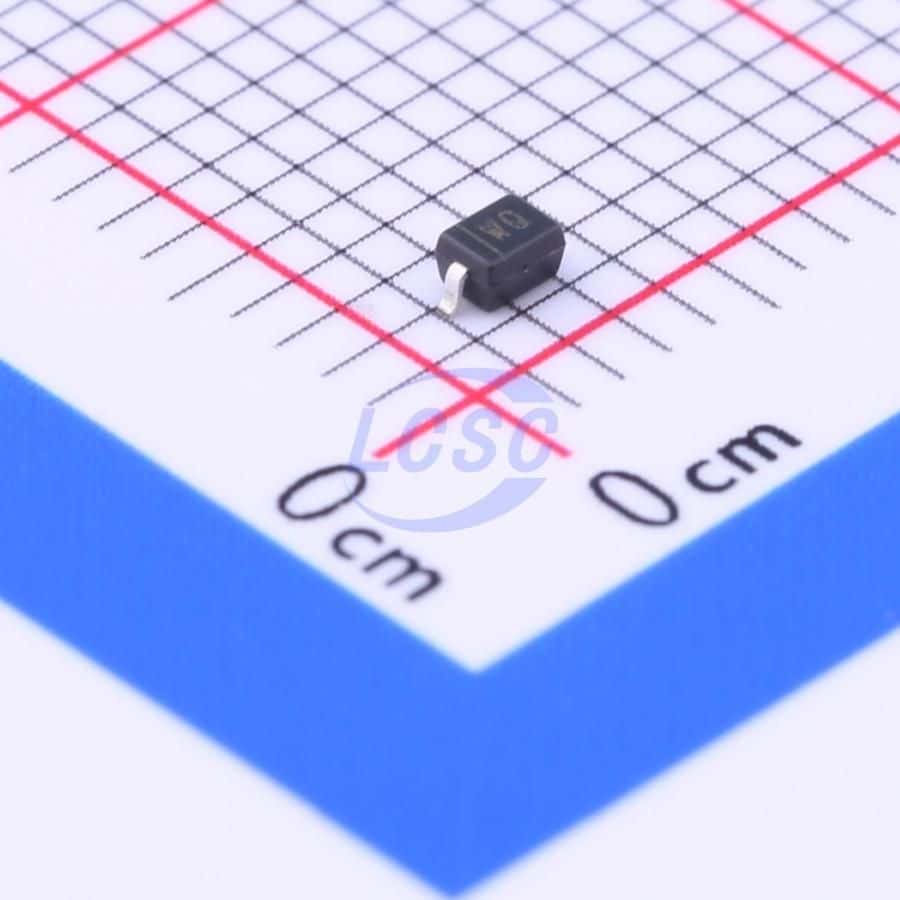

Product Images
