Surface mount Zener diode featuring a 9.1V DC rated voltage with a 6% tolerance. This unidirectional silicon diode offers 250mW power dissipation and a 5mA Zener current. Packaged in a compact DFN1006-2 (1mm x 0.6mm x 0.47mm) with gold contact plating, it operates from -65°C to 150°C and is RoHS compliant.
PackageDFN
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Diodes BZT52C9V1LP-7 technical specifications.
General
Package/Case
DFN
Contact Plating
Gold
ESD Protection
No
Height
0.47mm
Impedance
15R
Lead Free
Lead Free
Length
1mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
250mW
Max Reverse Current
500nA
Max Reverse Leakage Current
500nA
Mount
Surface Mount
Output Current
50mA
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
250mW
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
6%
DC Rated Voltage
9.1V
Voltage Tolerance
6%
Weight
3.5E-05oz
Width
0.6mm
Zener Current
5mA
Zener Voltage
9.1V
Compliance
RoHS
Compliant
Datasheet
Diodes BZT52C9V1LP-7 Datasheet
Download the complete datasheet for Diodes BZT52C9V1LP-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

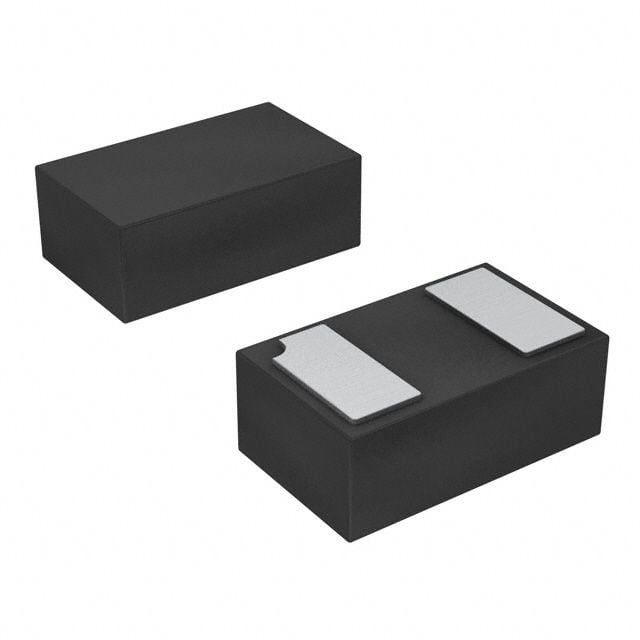

Product Images
