Unidirectional Zener Diode, 15V DC Rated Voltage with 6% tolerance. Features 200mW power dissipation, 30 Ohm impedance, and 5mA Zener current. Surface mountable in an ultra-small SOT-323 plastic package with tin matte contact plating. Operates from -65°C to 125°C, RoHS compliant, and lead-free.
PackageSOT-323
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Diodes BZX84C15W-7-F technical specifications.
General
Package/Case
SOT-323
Contact Plating
Tin, Matte
ESD Protection
No
Height
1mm
Impedance
30R
Lead Free
Lead Free
Length
2.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Max Power Dissipation
200mW
Max Reverse Current
100nA
Max Reverse Leakage Current
100nA
Mount
Surface Mount
Output Current
23mA
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
200mW
Radiation Hardening
No
Reverse Voltage
10.5V
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
6%
DC Rated Voltage
15V
Voltage Tolerance
6%
Weight
0.000212oz
Width
1.35mm
Zener Current
5mA
Zener Voltage
15V
Compliance
RoHS
Compliant
Datasheet
Diodes BZX84C15W-7-F Datasheet
Download the complete datasheet for Diodes BZX84C15W-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

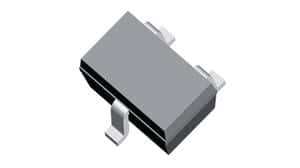

Product Images
