3V Zener Diode, 200mW power dissipation, featuring a 3V Zener voltage with 5% tolerance. This unidirectional silicon diode is housed in an ultra-small SOT-323 surface mount package, measuring 2.2mm in length, 1.35mm in width, and 1mm in height. It operates within a temperature range of -65°C to 125°C and offers a maximum reverse leakage current of 20uA. The component is lead-free, RoHS compliant, and supplied on tape and reel.
PackageSOT-323
MountingSurface Mount
Power200mW
Quick Jump:
Technical Specifications
Diodes BZX84C3V0W-7-F technical specifications.
General
Package/Case
SOT-323
Contact Plating
Tin, Matte
ESD Protection
No
Height
1mm
Impedance
95R
Lead Free
Lead Free
Length
2.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Max Power Dissipation
200mW
Max Reverse Current
20uA
Max Reverse Leakage Current
20uA
Mount
Surface Mount
Output Current
50mA
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
200mW
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
7%
DC Rated Voltage
3V
Voltage Tolerance
5%
Weight
0.000212oz
Width
1.35mm
Zener Current
5mA
Zener Voltage
3V
Compliance
RoHS
Compliant
Datasheet
Diodes BZX84C3V0W-7-F Datasheet
Download the complete datasheet for Diodes BZX84C3V0W-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

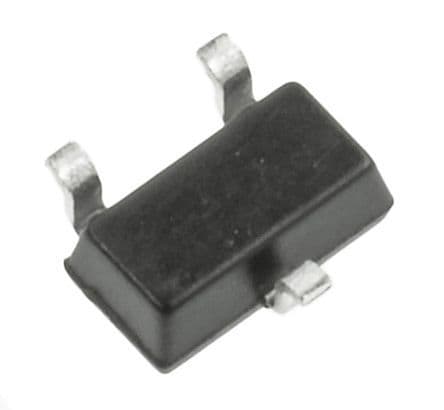

Product Images
