Bidirectional transient voltage suppressor diode offering 84W peak pulse power and 6A peak pulse current. Features a 5V reverse standoff voltage, 14V clamping voltage, and 6V minimum breakdown voltage. This surface mount device, in a DFN EP package (1006 metric, 0402 imperial), provides ESD protection with a low leakage current of 100nA. Operates across a wide temperature range of -65°C to 150°C.
PackageDFN EP
Capacitance20pF
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes D5V0L1B2LP4-7B technical specifications.
General
Capacitance
20pF
Case Code (Imperial)
0402
Case Code (Metric)
1006
Package/Case
DFN EP
Clamping Voltage
14V
Contact Plating
Gold
Depth
0.6mm
Diode Type
ZENER
Direction
Bidirectional
ESD Protection
Yes
Height
0.35mm
Lead Free
Lead Free
Leakage Current
100nA
Length
1mm
Min Breakdown Voltage
6V
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
84W
Max Reverse Leakage Current
100nA
Max Surge Current
6A
Mount
Surface Mount
Number of Bidirectional Channels
1
Package Quantity
10000
Packaging
Tape and Reel
Peak Pulse Current
6A
Peak Pulse Power
84W
Polarity
Bidirectional
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
Yes
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Termination
SMD/SMT
Width
0.675mm
Working Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Diodes D5V0L1B2LP4-7B Datasheet
Download the complete datasheet for Diodes D5V0L1B2LP4-7B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

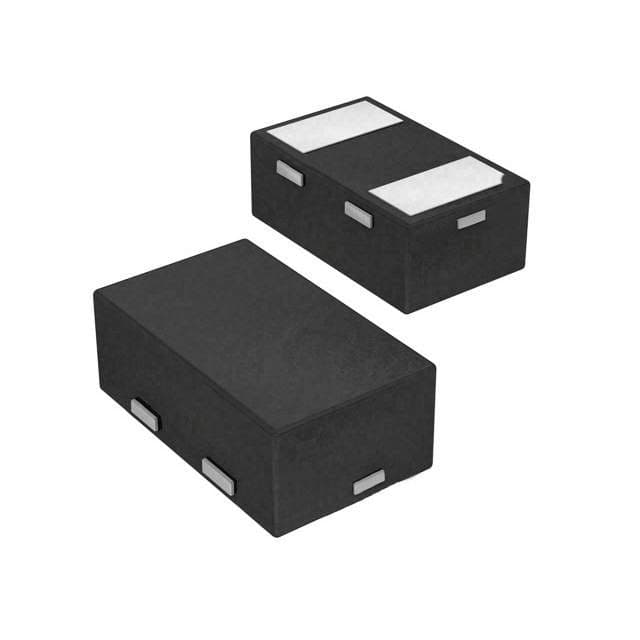

Product Images
