Surface mount bridge rectifier diode, 1.5A average rectified current, 200V repetitive peak reverse voltage. Features 50A peak non-repetitive surge current and 10µA max reverse current. Operates from -65°C to 150°C with 25pF capacitance. Packaged in tape and reel, this RoHS compliant component offers a 1.5A forward current rating.
PackageSMD/SMT
Capacitance25pF
Current Rating1.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes DF1502S-T technical specifications.
General
Average Rectified Current
1.5A
Capacitance
25pF
Package/Case
SMD/SMT
Current Rating
1.5A
Forward Current
1.5A
Height
3.4mm
Lead Free
Lead Free
Length
8.51mm
Max Forward Surge Current (Ifsm)
50A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
200V
Max Reverse Current
10uA
Max Surge Current
50A
Mount
Surface Mount
Number of Elements
1
Output Current
1.5A
Package Quantity
1500
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
50A
Radiation Hardening
No
Reverse Voltage (DC)
140V
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
200V
Weight
0.010547oz
Width
6.5mm
Compliance
RoHS
Compliant
Datasheet
Diodes DF1502S-T Datasheet
Download the complete datasheet for Diodes DF1502S-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

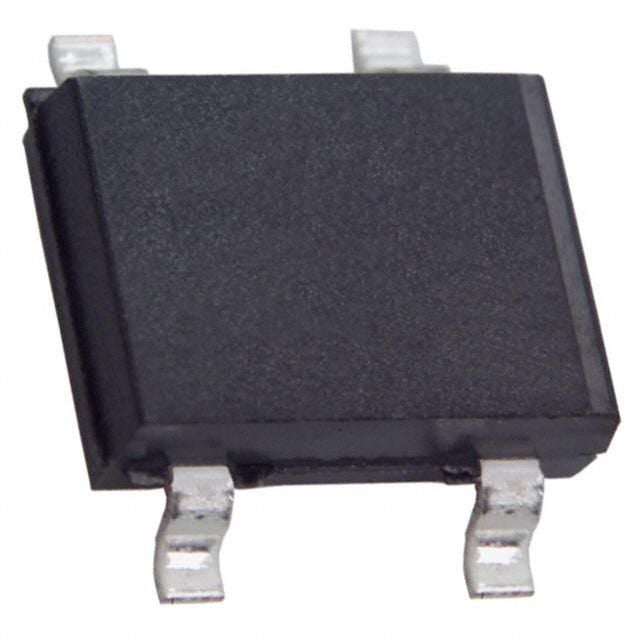

Product Images
