DIODES

DMG2307L-7

Datasheet

P-Channel JFET, 30V, 2.5A ID, 90mR Rds On, SOT-23

Diodes

DMG2307L-7

Name: DMG2307L-7 Diodes
Brand: Diodes
SKU: DMG2307L-7

P-Channel JFET, 30V, 2.5A ID, 90mR Rds On, SOT-23

P-Channel, Silicon, Metal-oxide Semiconductor FET for small signal applications. Features 30V Drain to Source Voltage (Vdss) and 2.5A Continuous Drain Current (ID). Offers low 90mR Drain to Source Resistance (Rds On Max) and fast switching times with 4.8ns Turn-On Delay and 13.4ns Fall Time. Packaged in a compact SOT-23 surface mount plastic package, this RoHS compliant component operates from -55°C to 150°C.

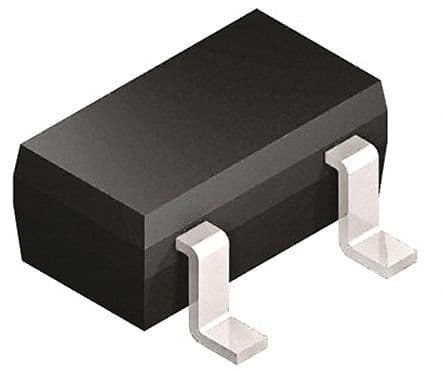

PackageSOT-23

MountingSurface Mount

PolarityP-CHANNEL

Quick Jump:

Technical Specifications

Diodes DMG2307L-7 technical specifications.

General

Package/Case	SOT-23
Continuous Drain Current (ID)	2.5A
Drain to Source Resistance	90mR
Drain to Source Voltage (Vdss)	30V
Fall Time	13.4ns
Gate to Source Voltage (Vgs)	20V
Height	1mm
Input Capacitance	371.3pF
Length	3mm
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Max Power Dissipation	760mW
Mount	Surface Mount
Number of Channels	1
Package Quantity	3000
Packaging	Tape and Reel
Polarity	P-CHANNEL
Radiation Hardening	No
Rds On Max	90mR
Reach SVHC Compliant	No
RoHS Compliant	Yes
Turn-Off Delay Time	22.4ns
Turn-On Delay Time	4.8ns
Weight	0.000282oz
Width	1.4mm
