NPN bipolar junction transistor in a SOT-23 package, featuring a 60V collector-emitter breakdown voltage and a 1A continuous collector current. This silicon transistor offers a maximum power dissipation of 500mW and a transition frequency of 150MHz. Designed for surface mounting, it operates across a temperature range of -55°C to 150°C and is RoHS compliant.
Frequency150MHz
PackageSOT-23
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes FMMT491TA technical specifications.
General
Package/Case
SOT-23
Collector Base Voltage (VCBO)
80V
Collector Emitter Breakdown Voltage
60V
Collector Emitter Saturation Voltage
160mV
Collector Emitter Voltage (VCEO)
60V
Collector-emitter Voltage-Max
250mV
Continuous Collector Current
1A
Current Rating
1A
Emitter Base Voltage (VEBO)
5V
Frequency
150MHz
Gain Bandwidth Product
150MHz
Height
1.02mm
hFE Min
100
Lead Free
Lead Free
Length
3.04mm
Max Breakdown Voltage
60V
Max Collector Current
1A
Max Frequency
150MHz
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Surface Mount
Number of Elements
1
Package Quantity
1
Packaging
Tape and Reel
Polarity
NPN
Power Dissipation
500mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Transition Frequency
150MHz
DC Rated Voltage
60V
Weight
0.000282oz
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Diodes FMMT491TA Datasheet
Download the complete datasheet for Diodes FMMT491TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

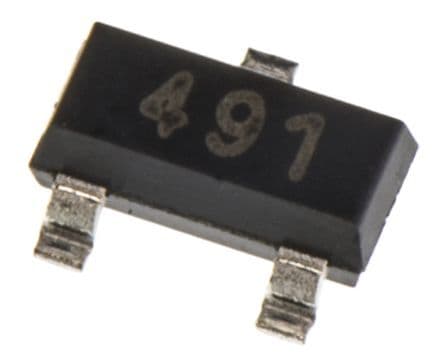

Product Images
