PNP Silicon Bipolar Junction Transistor (BJT) in a 3-pin SOT-23 surface mount package. Features a 40V Collector-Emitter Breakdown Voltage (VCEO) and a continuous collector current rating of -1.5A. Offers a maximum power dissipation of 625mW and a transition frequency of 190MHz. Operates within a temperature range of -55°C to 150°C and is RoHS compliant.
Frequency190MHz
PackageSOT-23
Current Rating-1.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes FMMT720TA technical specifications.
General
Package/Case
SOT-23
Collector Base Voltage (VCBO)
40V
Collector Emitter Breakdown Voltage
40V
Collector Emitter Saturation Voltage
-245mV
Collector Emitter Voltage (VCEO)
40V
Collector-emitter Voltage-Max
330mV
Continuous Collector Current
-1.5A
Current Rating
-1.5A
Emitter Base Voltage (VEBO)
5V
Frequency
190MHz
Gain Bandwidth Product
190MHz
Height
1mm
Lead Free
Lead Free
Length
3.05mm
Max Breakdown Voltage
40V
Max Collector Current
1.5A
Max Frequency
190MHz
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
625mW
Mount
Surface Mount
Number of Elements
1
Package Quantity
3000
Packaging
Tape and Reel
Polarity
PNP
Power Dissipation
625mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Transition Frequency
190MHz
DC Rated Voltage
-40V
Weight
0.000282oz
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Diodes FMMT720TA Datasheet
Download the complete datasheet for Diodes FMMT720TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

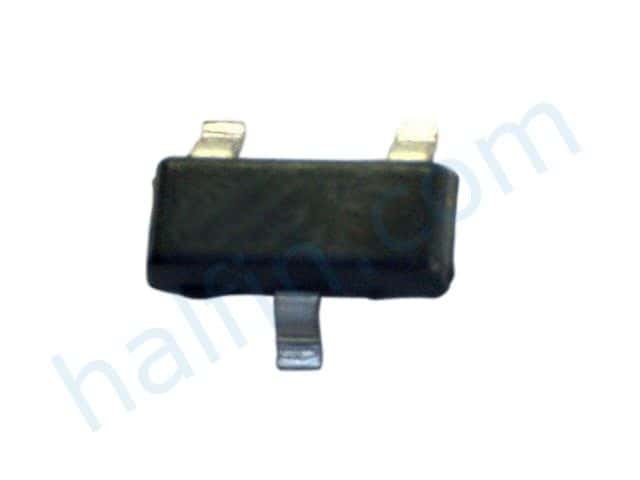

Product Images
