Diodes
GBPC3504
Bridge Rectifier Diode, 1 Phase, 35A, 400V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, GBPC, 4 PIN
Capacitance300pF
Current Rating35A
MountingScrew
Quick Jump:
Technical Specifications
Diodes GBPC3504 technical specifications.
General
Average Rectified Current
35A
Capacitance
300pF
Current Rating
35A
Forward Current
35A
Height
8mm
Lead Free
Lead Free
Length
28.8mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
400A
Mount
Screw
Number of Elements
1
Output Current
35A
Package Quantity
100
Packaging
Tray
Peak Non-Repetitive Surge Current
400A
Radiation Hardening
No
RoHS Compliant
Yes
DC Rated Voltage
400V
Width
28.8mm
Compliance
RoHS
Compliant
Datasheet
Diodes GBPC3504 Datasheet
Download the complete datasheet for Diodes GBPC3504 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

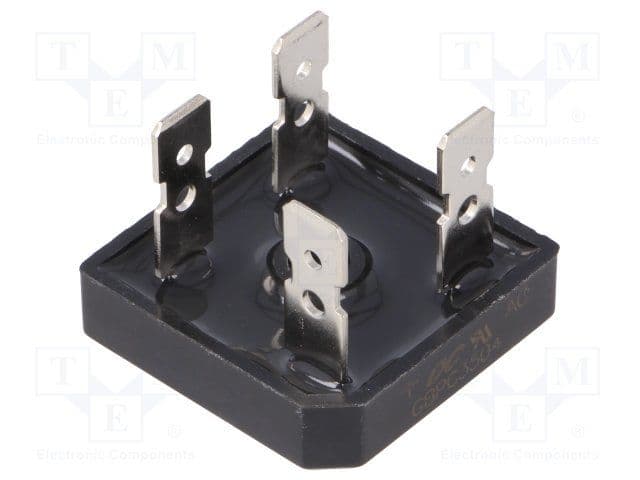

Product Images
