Technical Specifications
Diodes GBU606 technical specifications.
General
Average Rectified Current
6A
Forward Current
6A
Height
18.8mm
Lead Free
Lead Free
Length
22.3mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
5uA
Max Surge Current
175A
Mount
Through Hole
Number of Elements
1
Package Quantity
20
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
175A
Radiation Hardening
No
Reverse Voltage (DC)
420V
RoHS Compliant
Yes
Termination
Through Hole
Weight
0.120073oz
Width
3.56mm
Compliance
RoHS
Compliant
Datasheet
Diodes GBU606 Datasheet
Download the complete datasheet for Diodes GBU606 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

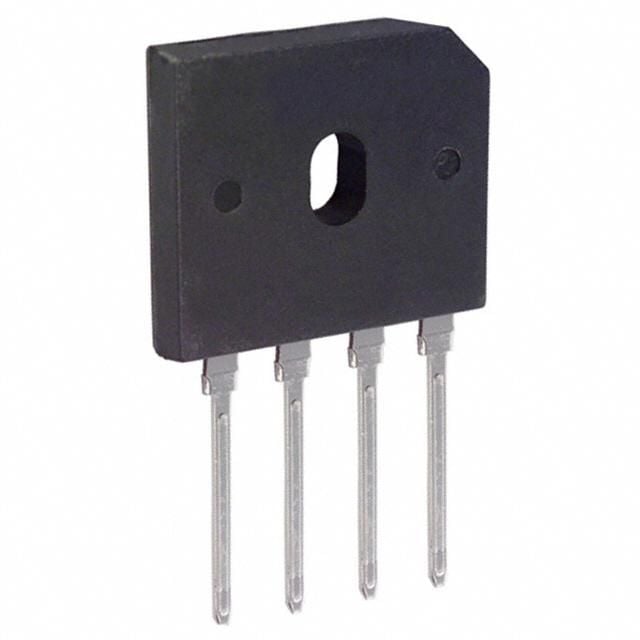

Product Images
